PEC 15mm x 15mm - Photo-electrochemical Cell

[powr-form-builder id=eb1c42d8_1505226564]

  • €1,712.00

SKU: C-A-PEC_SS-15x15-1

Order today, and we'll ship your package between and .

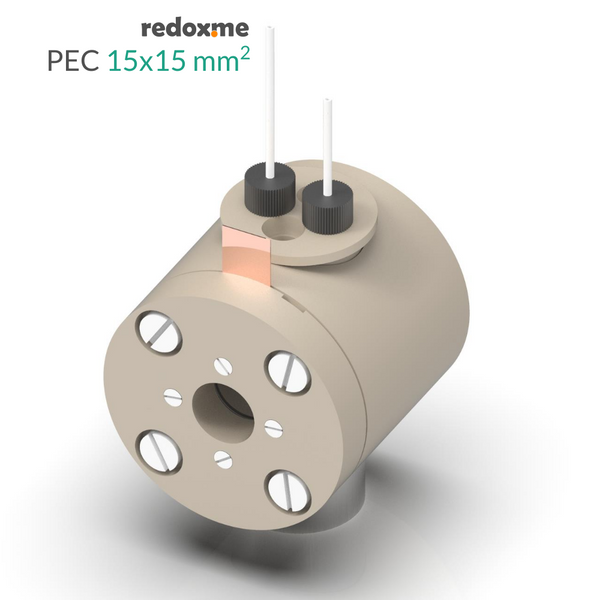

This is a horizontally mounted, single compartment photo-electrochemical cell for measurements of materials based on 15x15 mm2 sample. This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of 2D materials and thin film photo-anodes such as monolayer graphene. The cathode (counter electrode) and reference electrode are mounted in a top casing. The cell elements are made of PEEK. It well fits aqueous and organic solvent electrolyte requirements. The construction is gas-tight having gas inlet and outlet, which can be used to bubble the solution and evacuate gases from the chamber.

Another version of this cell equipped with magnetic mount instead of screws is available here.

Application note

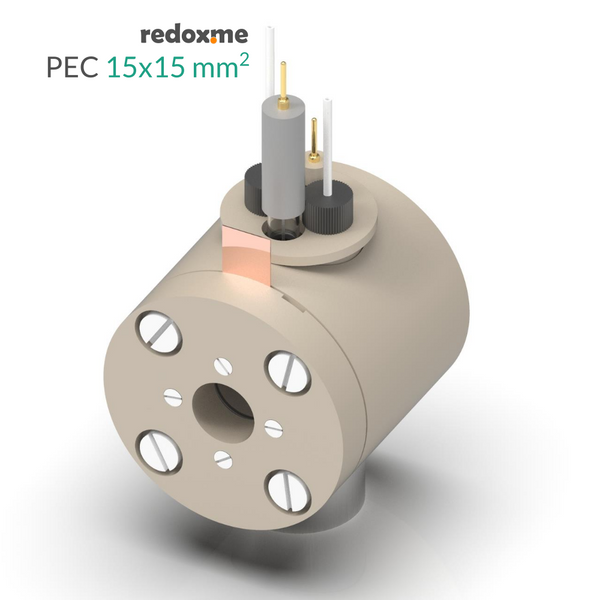

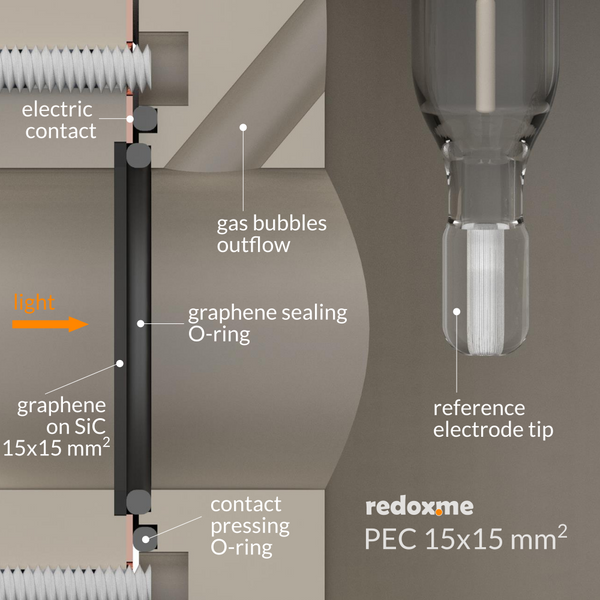

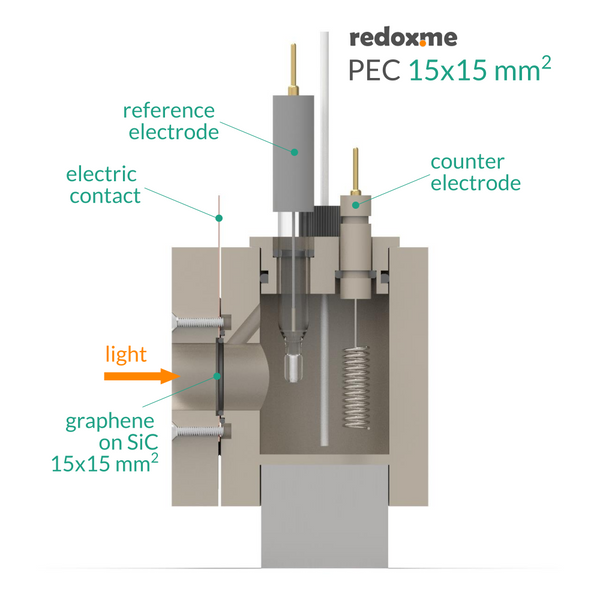

The sample is installed in the classical screw mount, facing the cell chamber. In 2-electrode setup, the counter electrode is placed in the socket close to the working electrode while the remaining socket is plugged. When 3-electrode setup is required, the reference electrode is placed close to the measured sample to limit the effect of electrolyte resistance, while the counter electrode occupies the remaining socket. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes. Typical applications include: basic photochemistry, photolytic water splitting, photoinduced charge separation and photocorrosion. For troubleshooting instruction see the redox.me blog post.

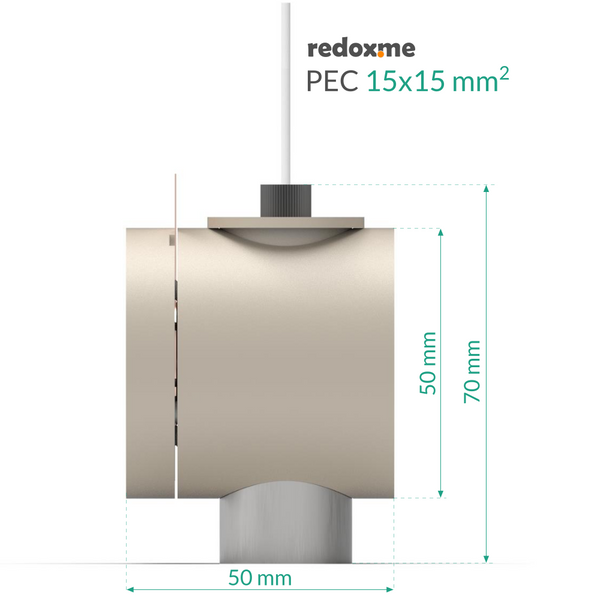

Specification
nominal exposure area: 1.33 cm2
minimum electrolyte volume: 10 mL
maximum electrolyte volume: 15 mL
electrode plug diameter: 6 mm
substrate size: 15 mm x 15 mm
substrate thickness: 0.5 mm

Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 200g

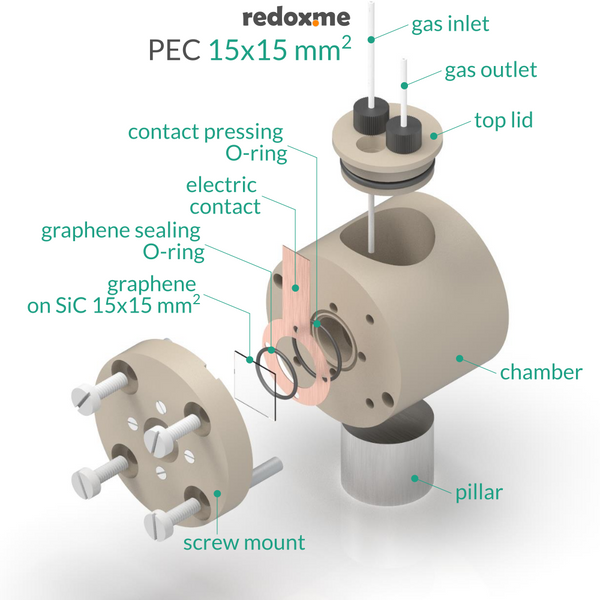

Product includes
1 x lid – 0001CPEMA
1 x sample mount – 0040CPEMASM
1 x WE copper contact - 0019CCUMA
1 x chamber - 0039CPEMASM
1 x pillar – 0031PSSMA
1 x plug
1 x set of screws – 0032PNYCM
