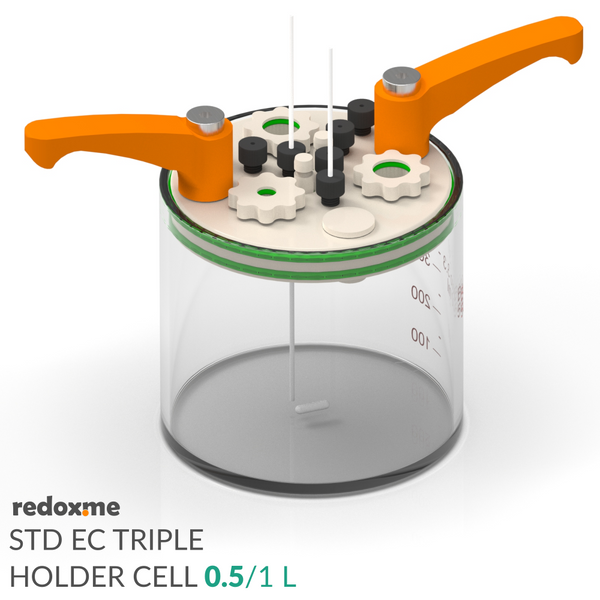

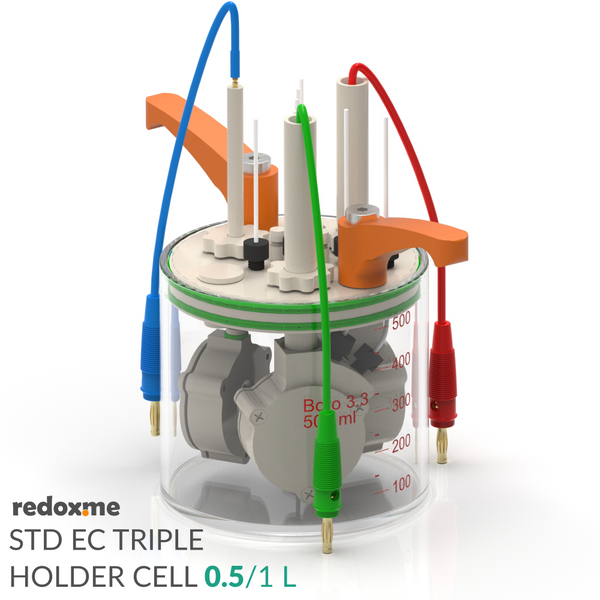

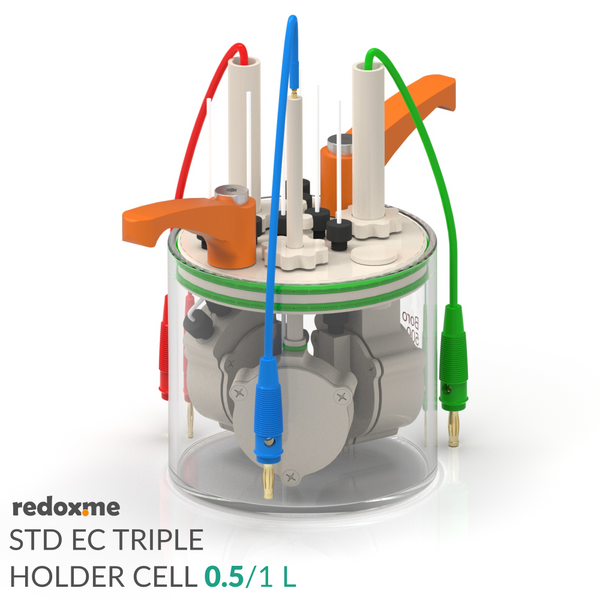

Standard Electrochemical Triple Holder Cell

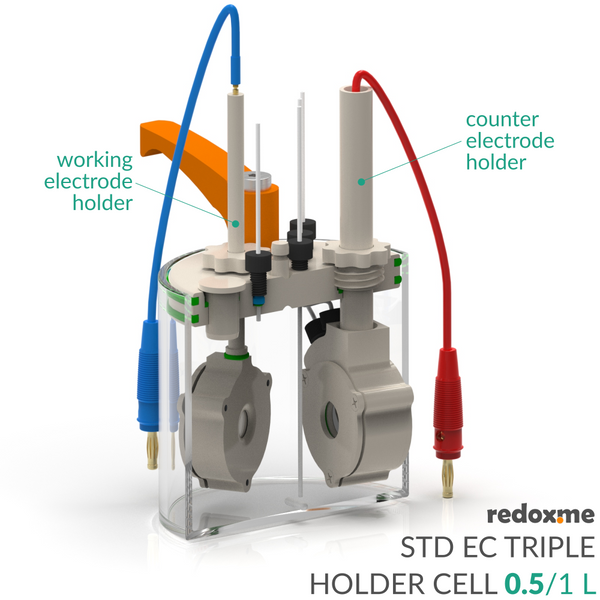

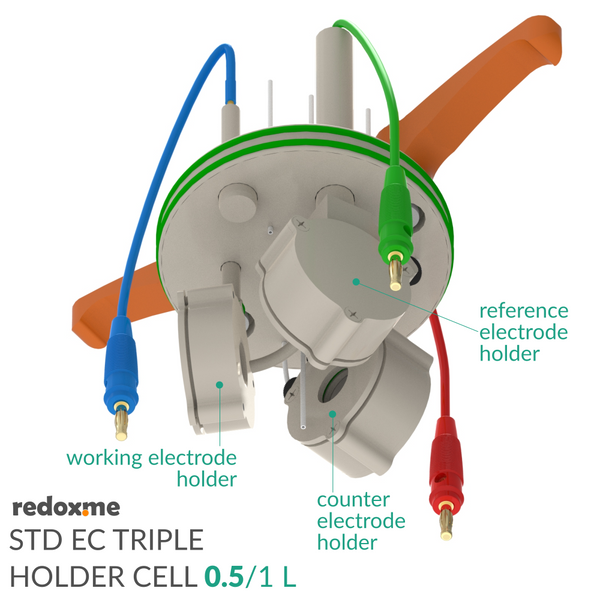

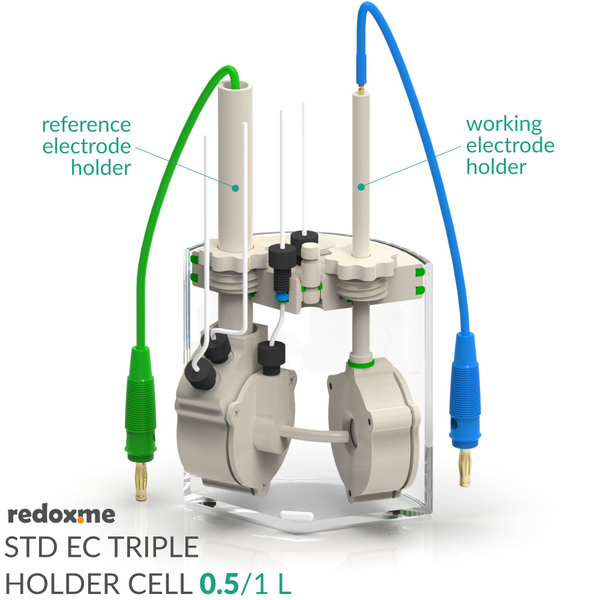

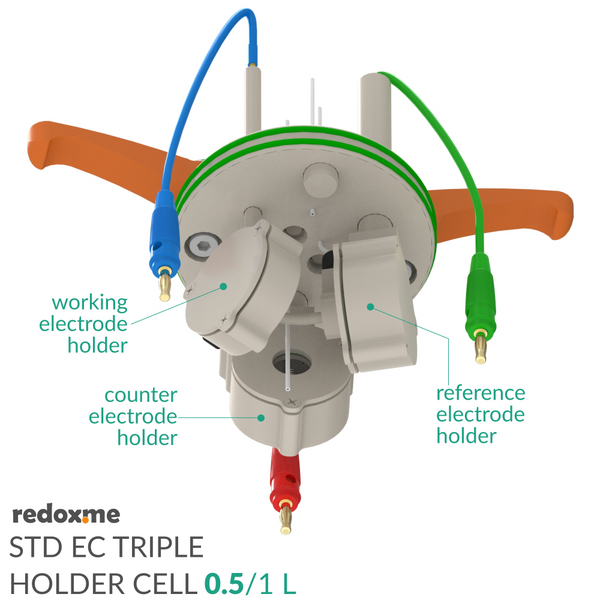

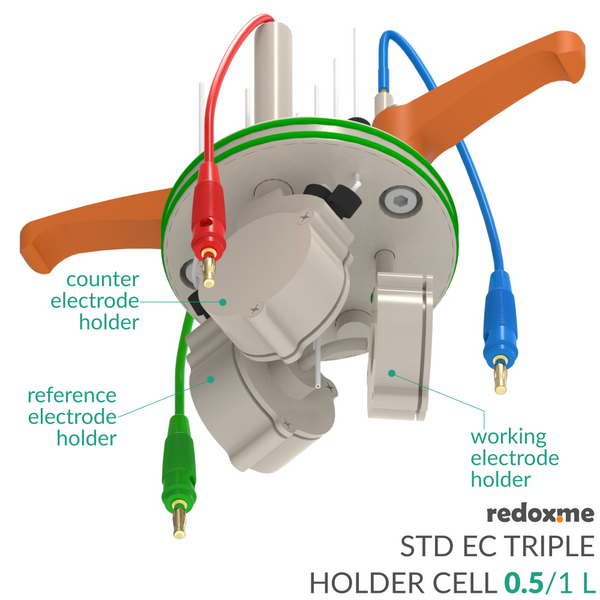

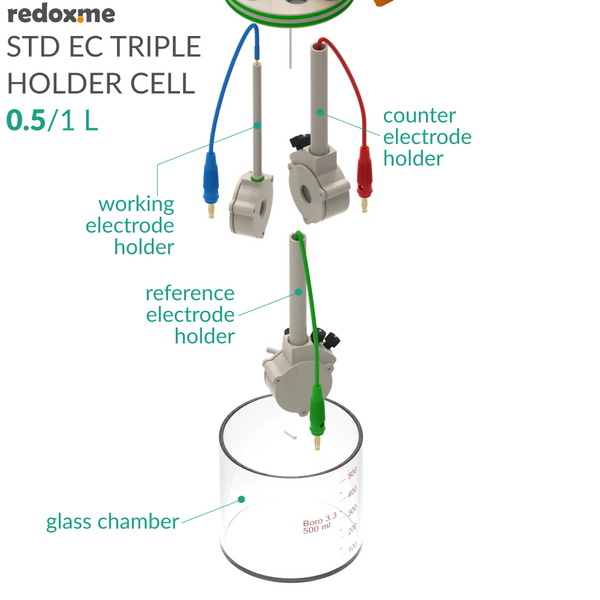

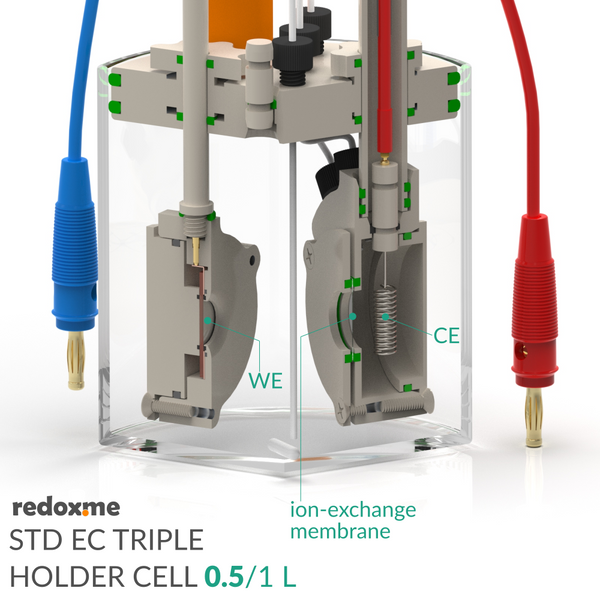

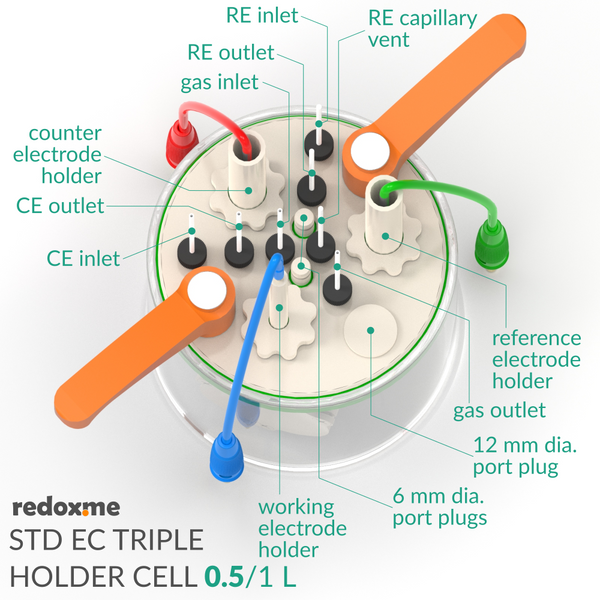

This is a stationary solution standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) plate, b) foil, c) thin film deposited on flat substrate and d) free-standing films. The working electrode is installed in the sample holder (included in the setup). Other sample holders are available on request. The counter electrode of choice is installed in a counter electrode holder (included in the setup) and separated from the other electrodes by a membrane. The Ag/AgCl or Ag/Ag+ reference electrode (other types are available on request) is installed in reference electrode holder (included in the setup) and is also separated by an additional membrane that prevent ion leakage from the RE into the reaction chamber. The electrochemically active electrodes (working, counter and reference) and membranes are not included in the setup. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.
The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. The jacketed model that allows temperature control is available here.
Application note

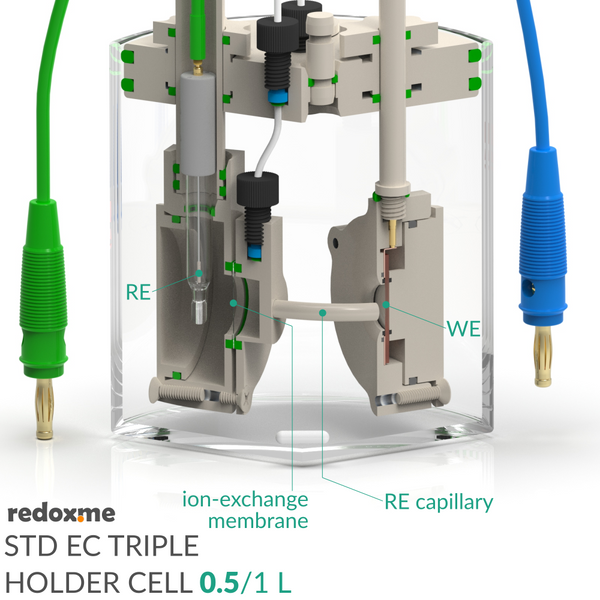

The reference electrode capillary tip should be placed close to a working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various 6 mm dia. auxiliary electrodes are suitable for this cell including metal wire, Graphite rod or Glassy Carbon rod.
Specification
maximum electrolyte volume: 500 or 1000 mL
electrode plug diameter: 6 mm and 12 mm

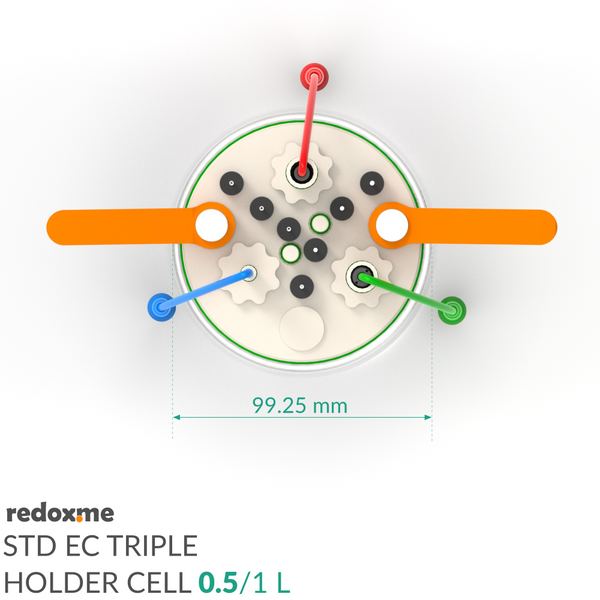

number of electrode ports: 3 x 6 mm dia., 3 x 12 mm dia.
glass chamber material: borosilicate 3.3 glass
Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 300g (500 mL), 500g (1000 mL)

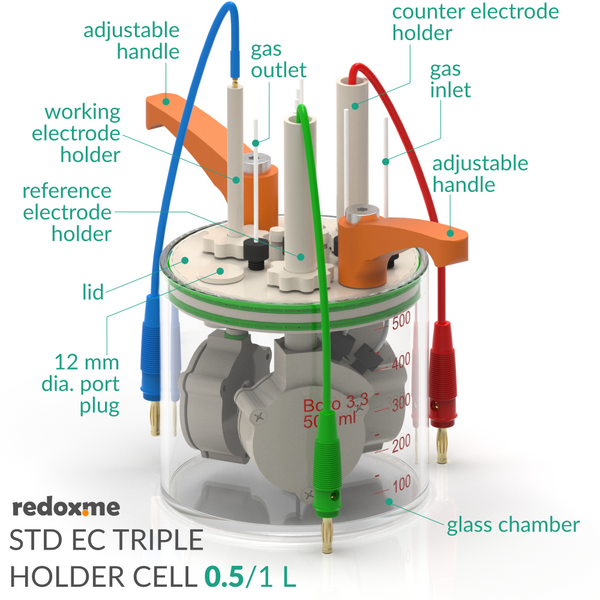

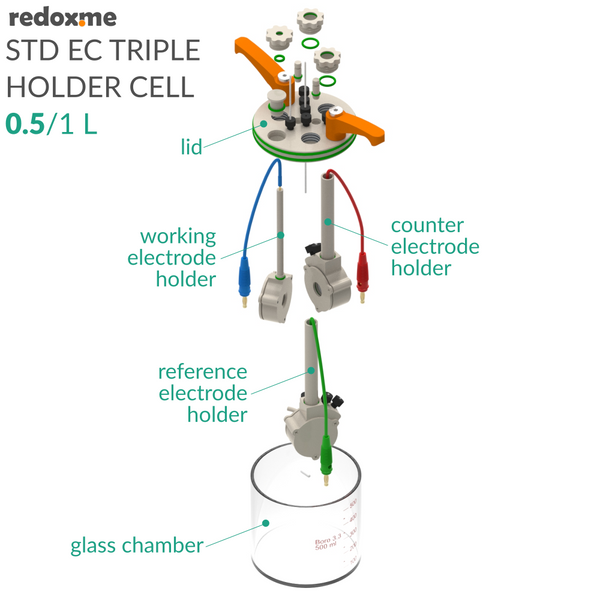

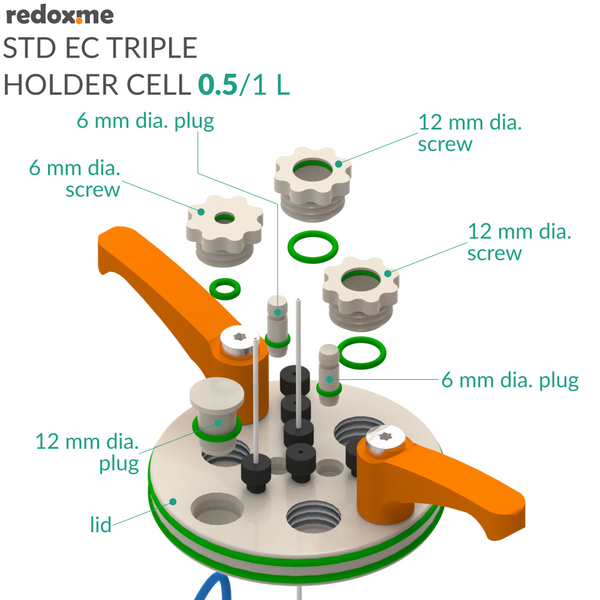

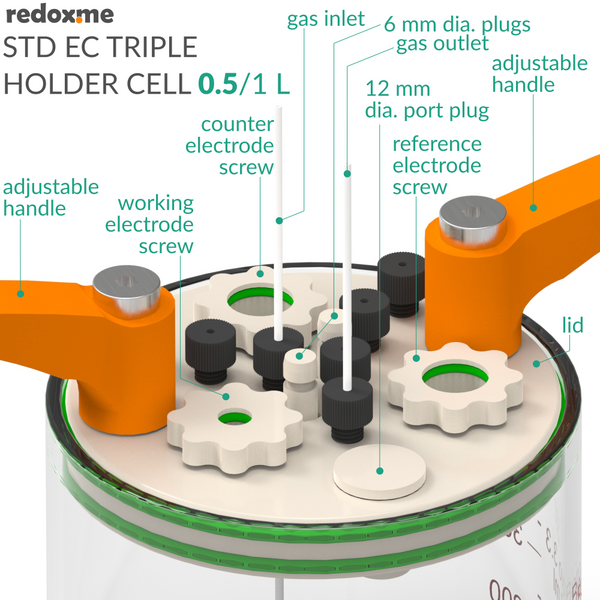

Product includes
1 x lid
2 x adjustable handle
1 x glass chamber
1 x working electrode screw
2 x counter/reference electrode screw
1 x Sample Holder 25 mm x 25 mm
1 x Counter Electrode Holder
1 x Reference Electrode Holder
2 x 6 mm dia. plug
2 x 12 mm dia. plug
3 x Electrode Adapter Cable
