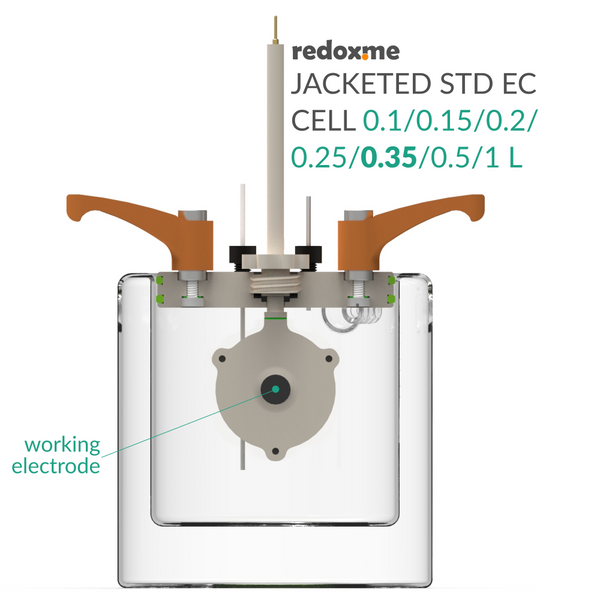

Jacketed Standard Electrochemical Cell

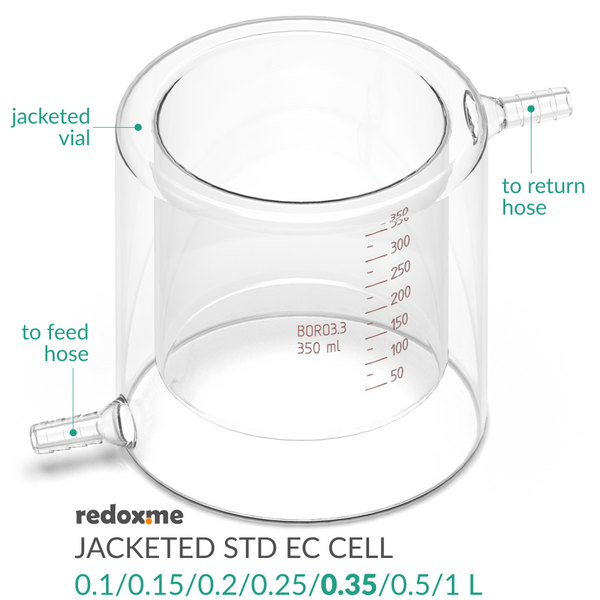

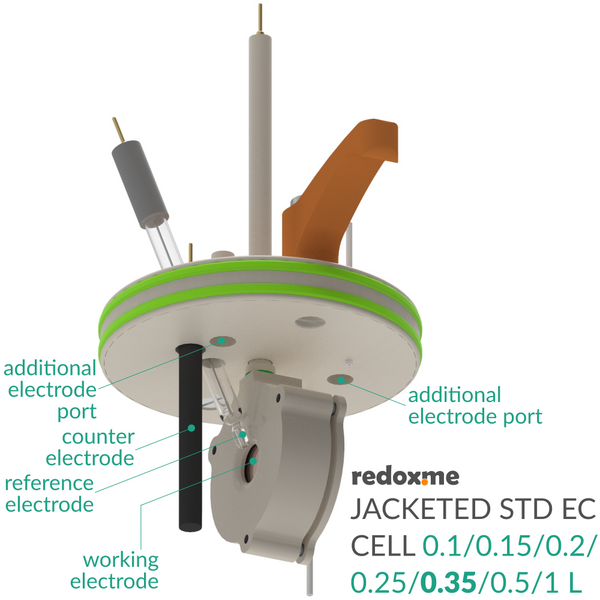

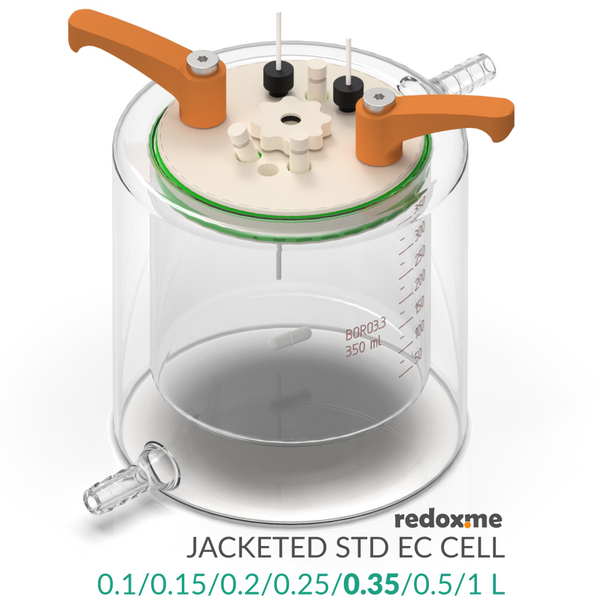

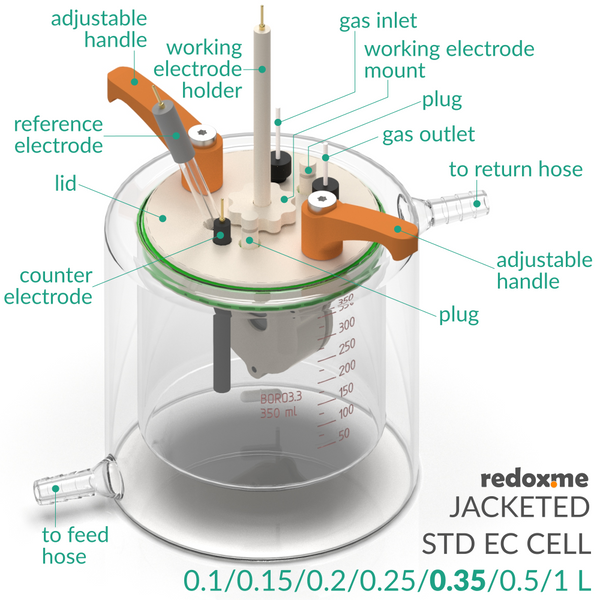

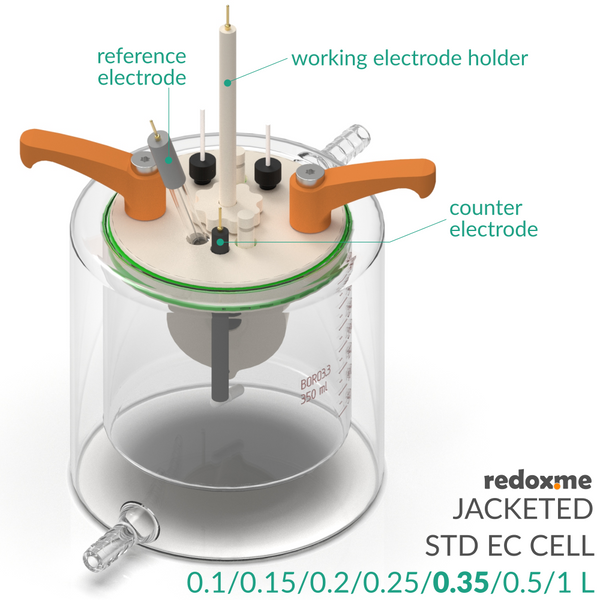

This is a stationary solution jacketed standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) rod/disc (6 mm dia.), b) thin film deposited on flat substrate (using a sample holder) and c) membrane (using a clip electrode). The working, counter and reference electrodes are mounted in a top casing either in 2-, or 3-electrode setup. A temperature of an electrolyte can be controlled by circulation of a fluid agent between thermostatic bath and the jacketed vial. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.
The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. The non-jacketed model is available here.

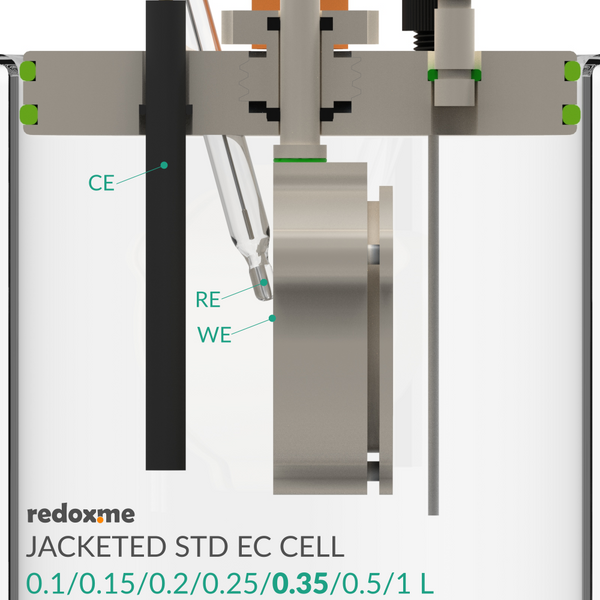

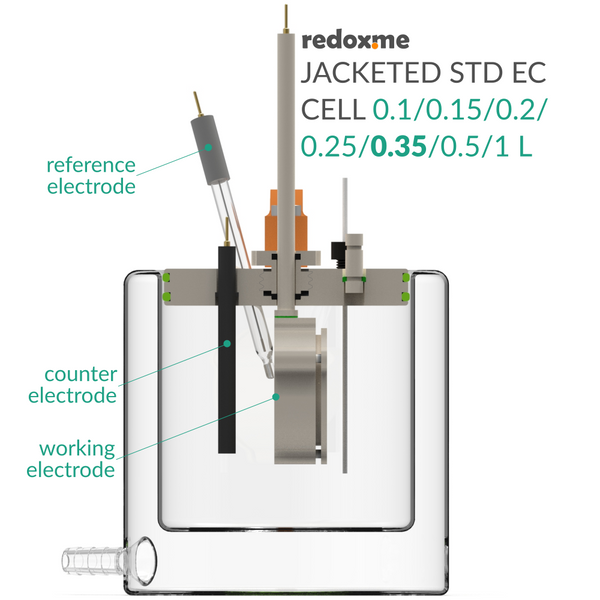

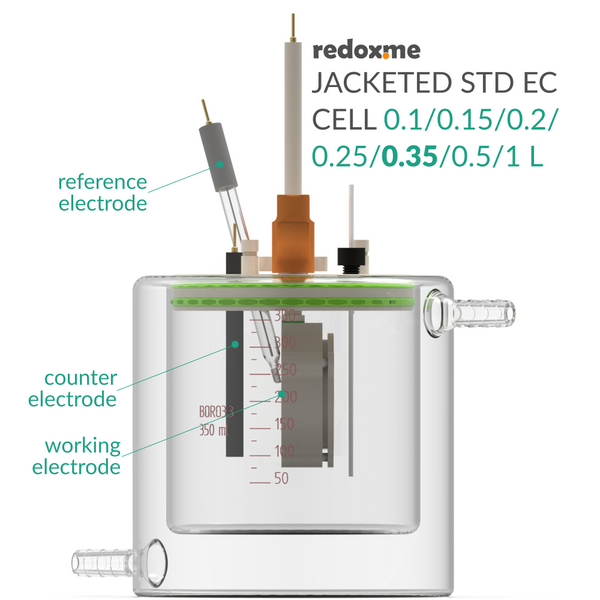

The reference electrode tip should be placed close to a working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.
Operating Video Manual:

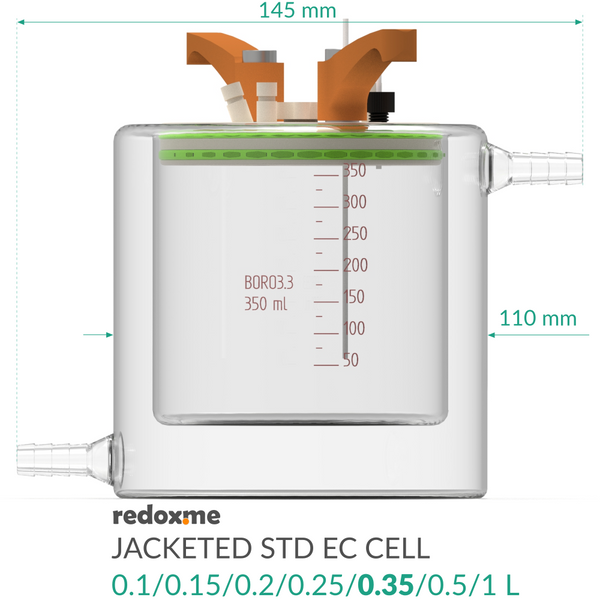

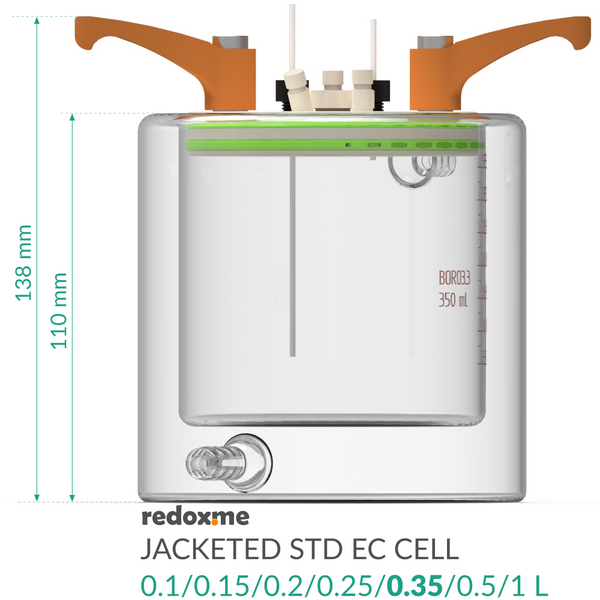

maximum electrolyte volume: 100, 150, 200, 250, 350, 500 or 1000 mL
electrode plug diameter: 6 mm

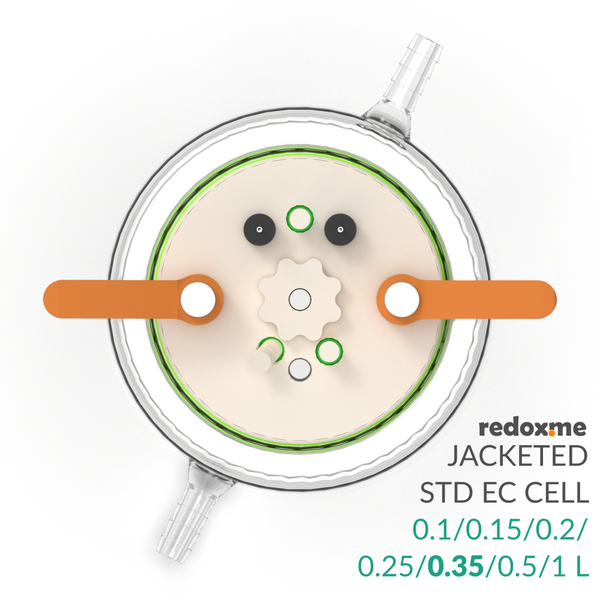

number of electrode ports: 5
vial material: borosilicate 3.3 glass
hose connector type: multi barb
recommended tube size: ID 8.0 mm
HS Code: 90309000
Country of Origin: Sweden
NET weight: 100g (100, 150 mL), 200g (200, 250, 350 mL), 500g (500 mL), 1000g (1000 mL)

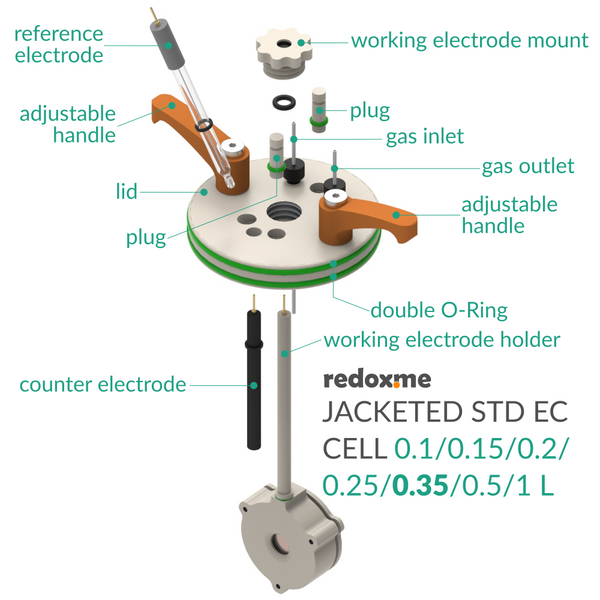

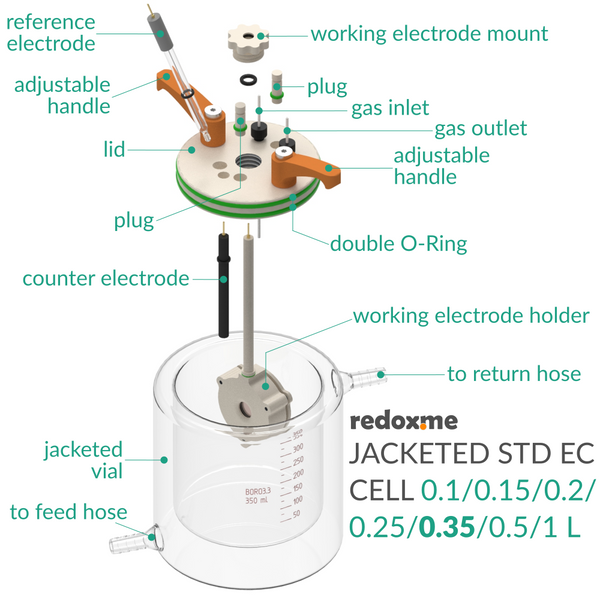

1 x lid
2 x adjustable handle
1 x jacketed vial
1 x working electrode mount
3 x plug
