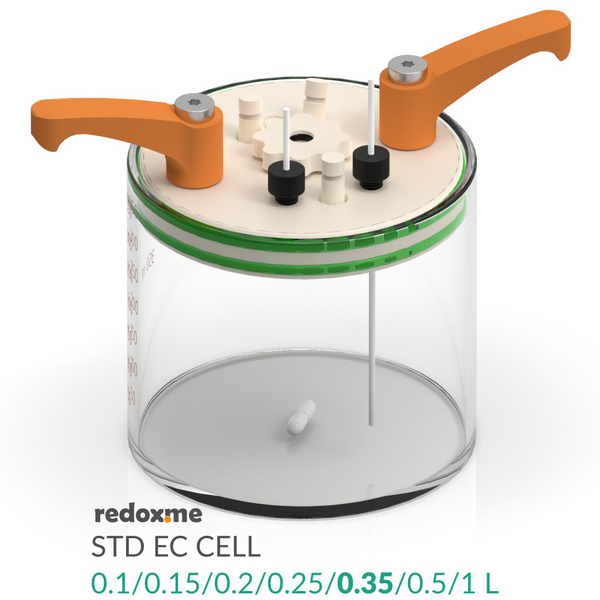

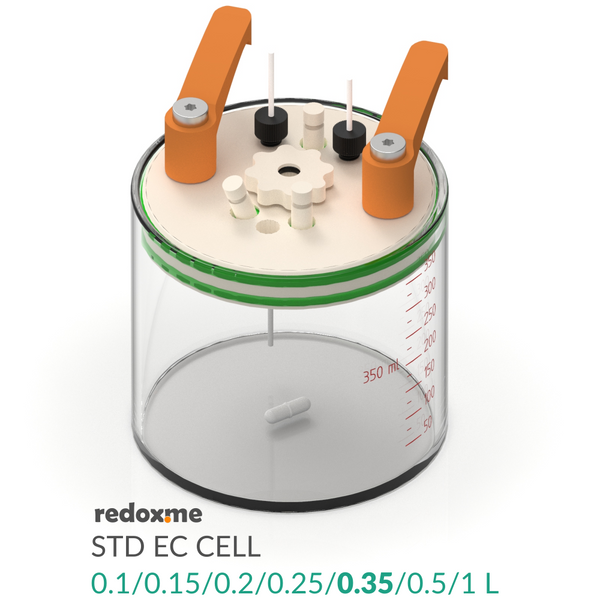

Standard Electrochemical Cell

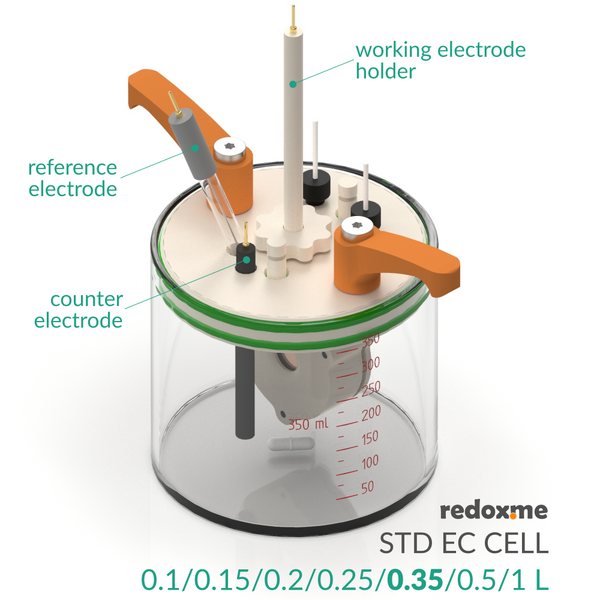

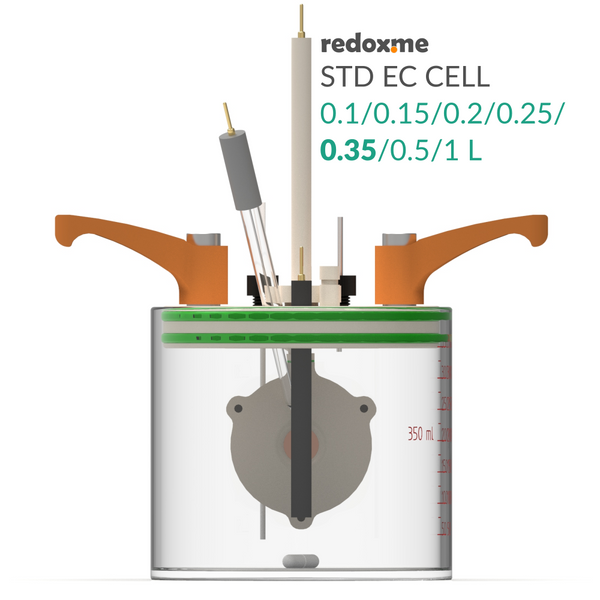

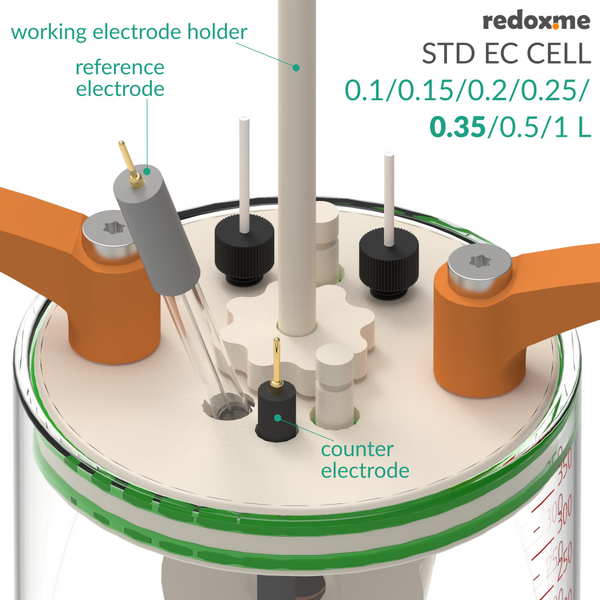

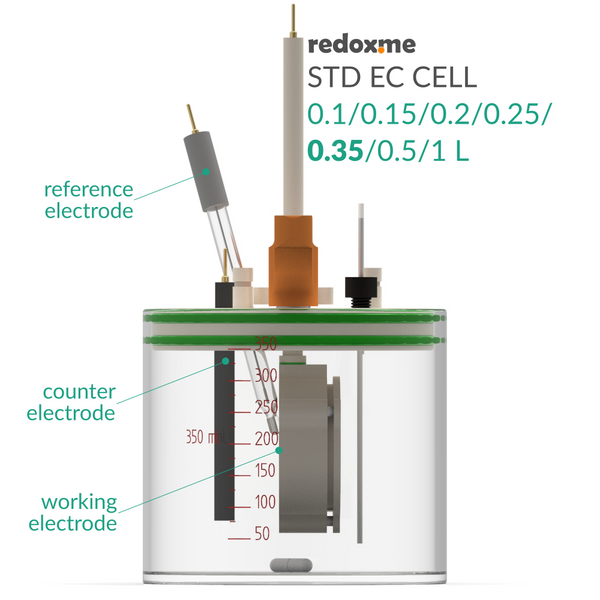

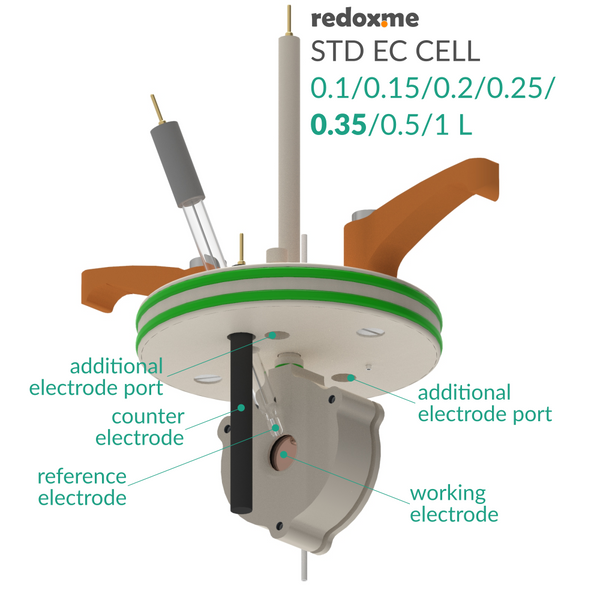

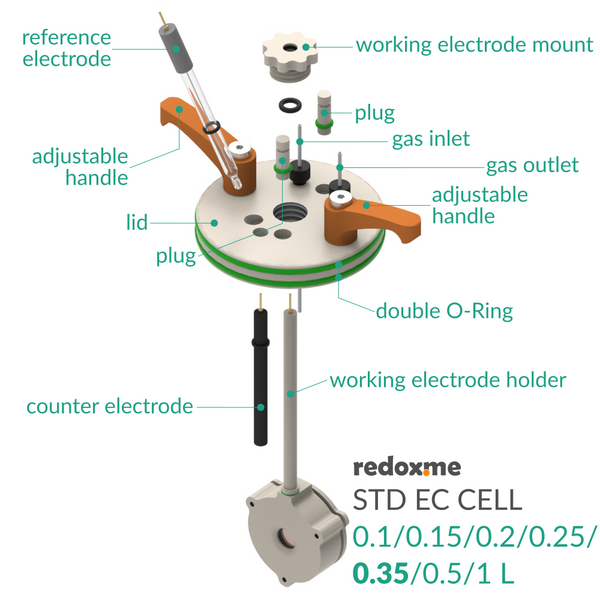

This is a stationary solution standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) rod/disc (6 mm dia.), b) thin film deposited on flat substrate (using a sample holder) and c) free-standing membrane (using the basic sample holder). The working, counter and reference electrodes (not included in the setup) are mounted in a top casing either in 2-, or 3-electrode setup. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.
The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. The jacketed model is available here.

Application note

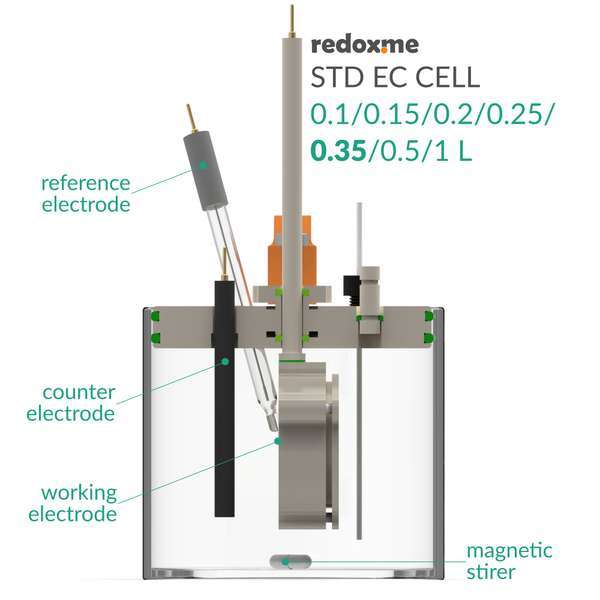

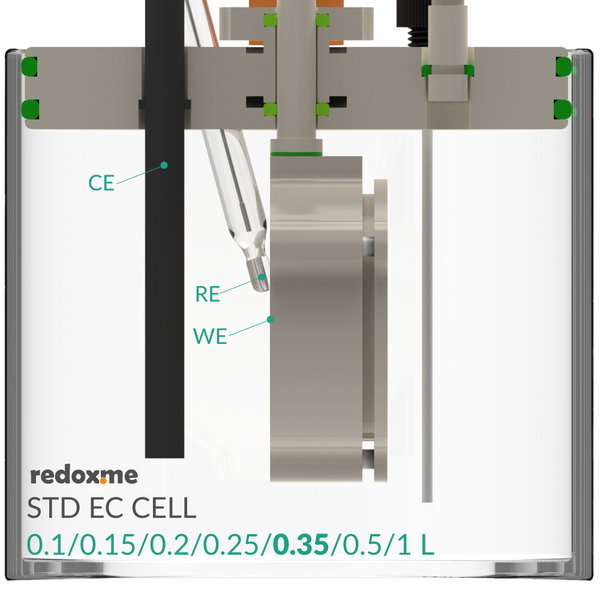

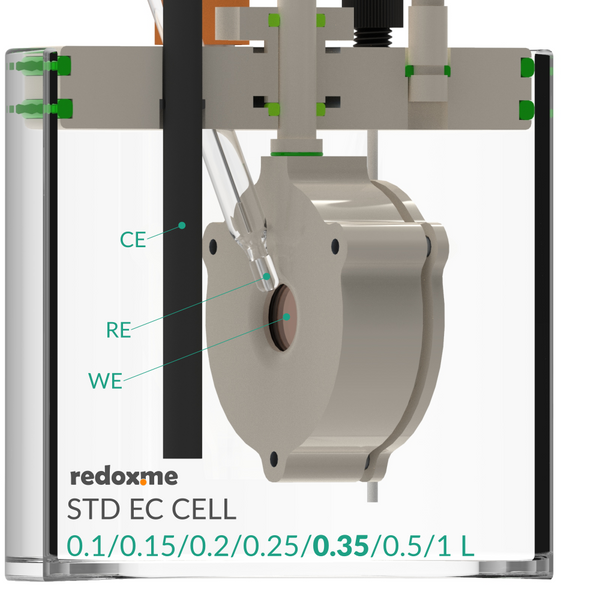

The reference electrode tip should be placed close to a working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

Operating Video Manual:

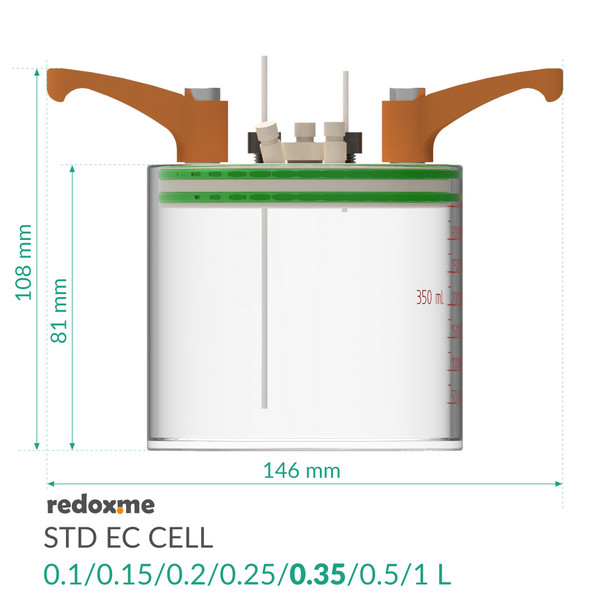

Specification

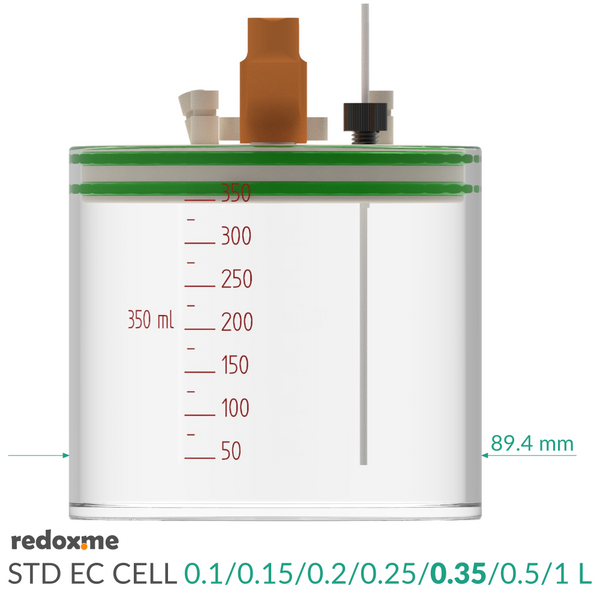

maximum electrolyte volume: 100, 150, 200, 250, 350, 500 or 1000 mL
electrode plug diameter: 6 mm

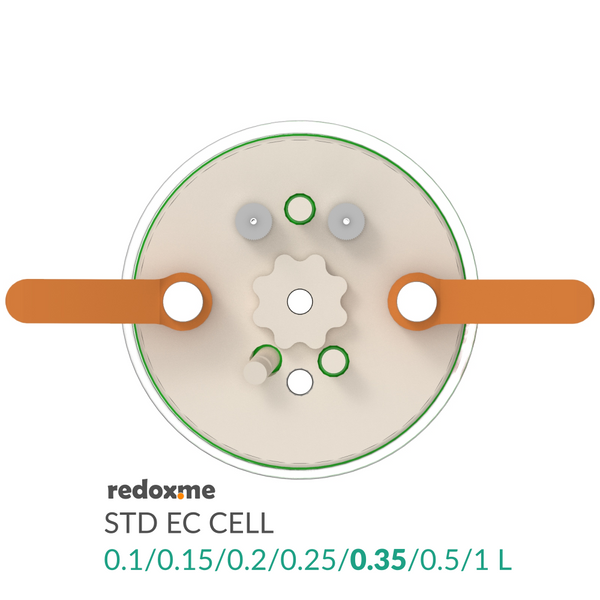

number of electrode ports: 5
vial material: borosilicate 3.3 glass

Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 100g (100, 150 mL), 200g (200, 250, 350 mL), 300g (500 mL), 500g (1000 mL)

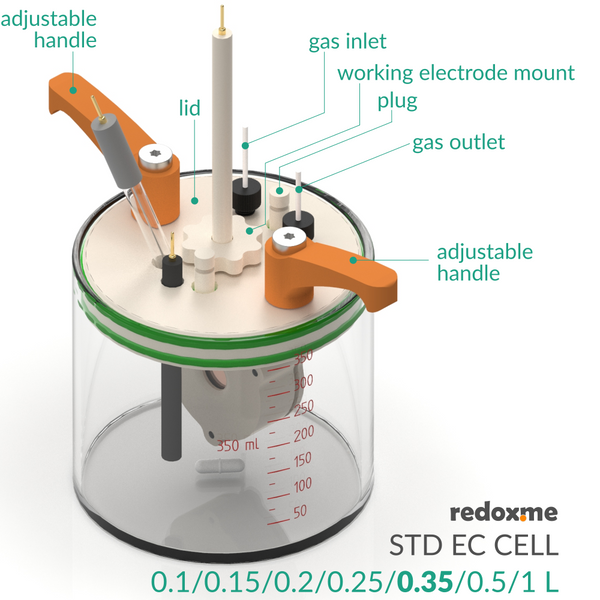

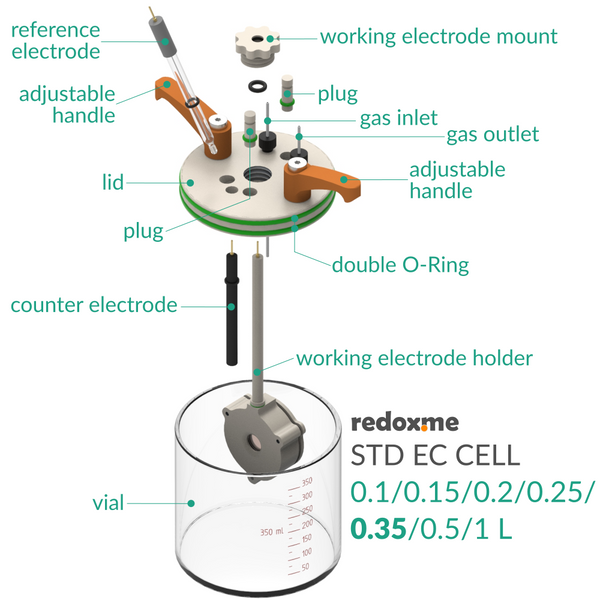

Product includes
1 x lid
2 x adjustable handle

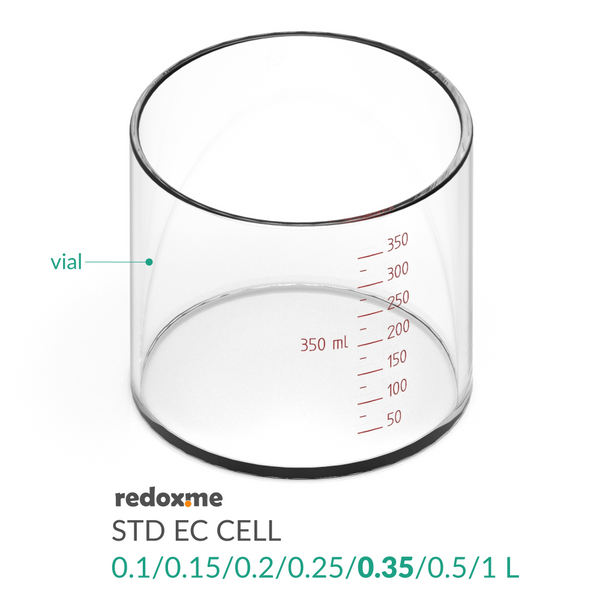

1 x vial
1 x working electrode screw
3 x plug
