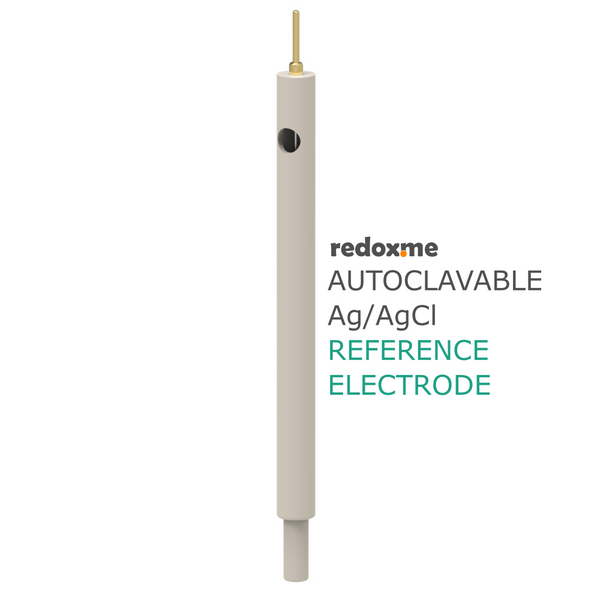

Autoclavable Silver / Silver Chloride Reference Electrode - Autoclavable Ag/AgCl

[powr-form-builder id=eb1c42d8_1505226564]

  • €263.00

SKU: E-AC_Ag/AgCl

Order today, and we'll ship your package between and .

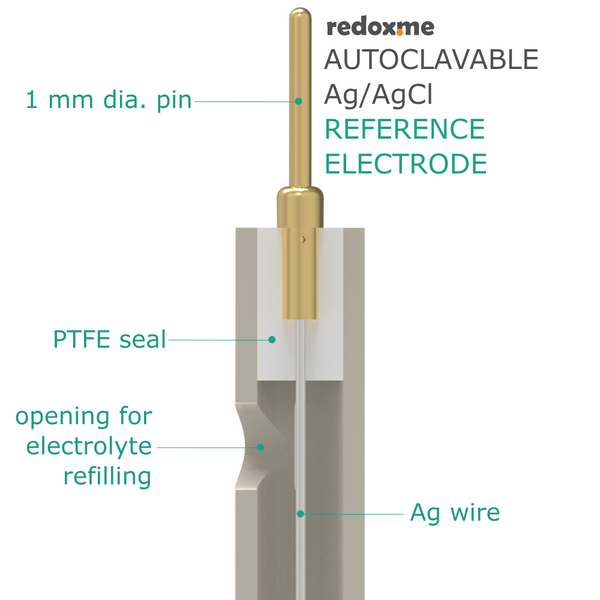

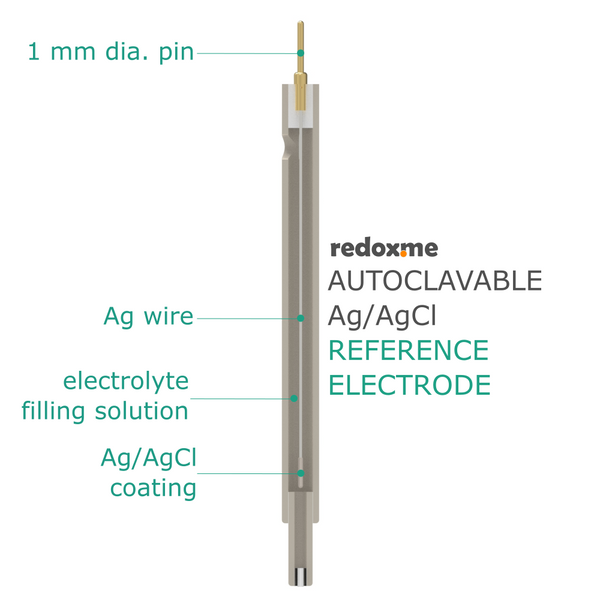

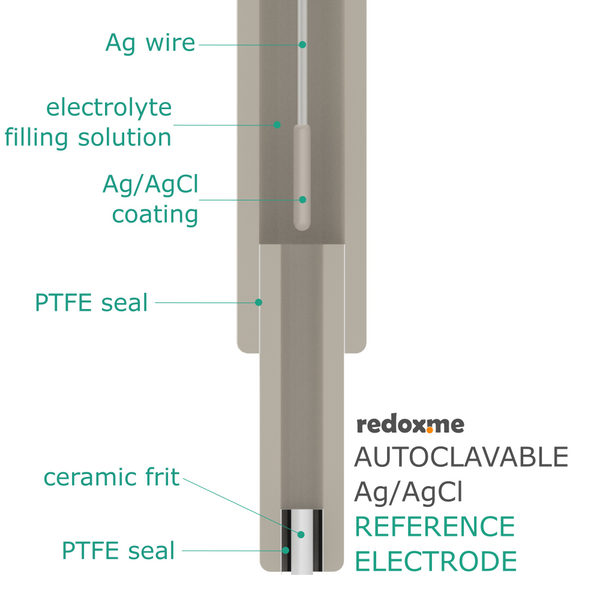

It is an autoclavable Ag/AgCl reference electrode equipped with ceramic frit sealed using PTFE into the PEEK body. All materials used to fabricate this electrode are suitable for hydrothermal processes. However, even PEEK and PTFE can withstand a limited number of autoclave cycles before crazing. The number of steam autoclave cycles that an autoclavable Ag/AgCl will be able to withstand before deteriorating depends mainly on the autoclave temperature, cycle time and Ph of the solution.

Application note
This electrode is suitable for an aqueous environment under hydrothermal conditions. The electrode should be refilled with an electrolyte (typically 3M KCl) before each use. The electrode can be stored dry or immersed in an electrolyte (3M KCl or a buffer solution).

Specification

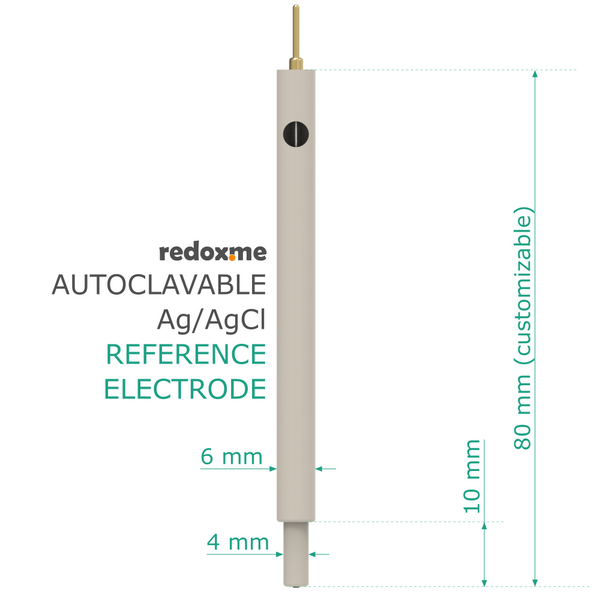

effective length: 80 mm (customizable)
tube diameter: 6 mm and 4 mm (tip)
recommended filling solution: 3M KCl

Intrastat data
HS Code: 90278930
Country of Origin: Sweden
NET weight: 100g

Product includes
1 x Autoclavable Ag/AgCl reference electrode

Related products
Autoclavable 2-CEC 50 mL
