Electrosynthesis Multiple Reactor Set, B-series

[powr-form-builder id=eb1c42d8_1505226564]

  • €5,985.00


Order today, and we'll ship your package between and .

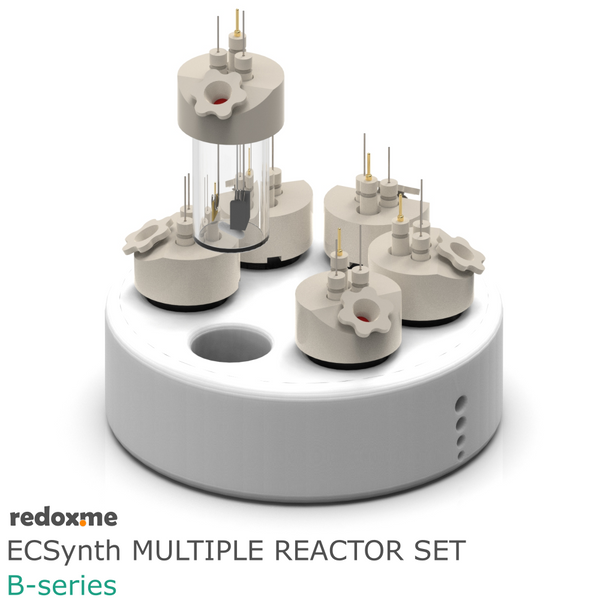

Electrosynthesis Multiple Reactor Set consists of a selected number of Electrosynthesis Reactors from B-series or B-series/septa and PTFE-coated Aluminum Block with a corresponding number of cavities.

Application note
This Electrosynthesis Multiple Reactor Set is suitable for both, constant current and constant potential electrolysis in aqueous or organic media. The assembled set should be placed on a hot-plate or a hot-plate magnetic stirrer. The heating block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm. Electrodes are not included in the set, so they need to be added to the quotation separately. For troubleshooting instruction see the redox.me blog post

weight: approx. 1.8 kg
maximum electrolyte volume: 18.5 mL
electrode plug diameter: 6 mm
number of electrode slots: 3
distance between anode and cathode: 9 mm
outer diameter of the glass chamber: 26 mm
effective height of the glass chamber: 43.7 mm
maximum operational temperature: 200 deg C
minimum operational temperature: -20 deg C
tubbing size (if any): 1 mm ID, 1.6 mm OD
septa size (if any): ND9
heating block height: 45 mm
heating block cavity depth: 40 mm
heating block cavity diameter: 27 mm
heating block diameter: 135 mm
thermometer hole diameter: 2.5 mm, 3.5 mm, 4.5 mm and 5.5 mm

Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 1300 g (1 reactor), 1400 g (2 reactors), 1500 g (3 reactors), 1600 g (4 reactors), 1700 g (5 reactors), 1800 g (6 reactors)

Product includes
1 x PTFE-coated Aluminum Block B-series
selected number of Electrosynthesis Reactors from B-series or B-series/septa
