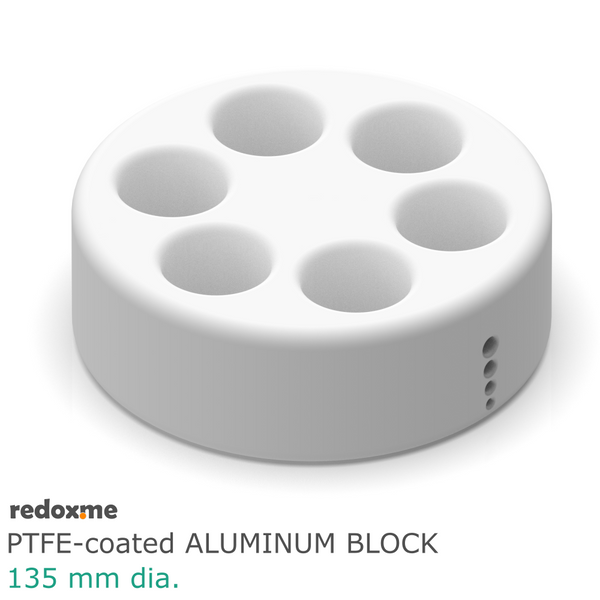

PTFE-coated Aluminum Block
This PTFE-coated Aluminum Block provides excellent thermal conductivity, while having chemically resistive surface (resistant to strong acid, strong alkali, aqua regain and various organic solvents). It provides a dry bath heating conditions to Electrosynthesis Reactors from series either A, B, C or D.

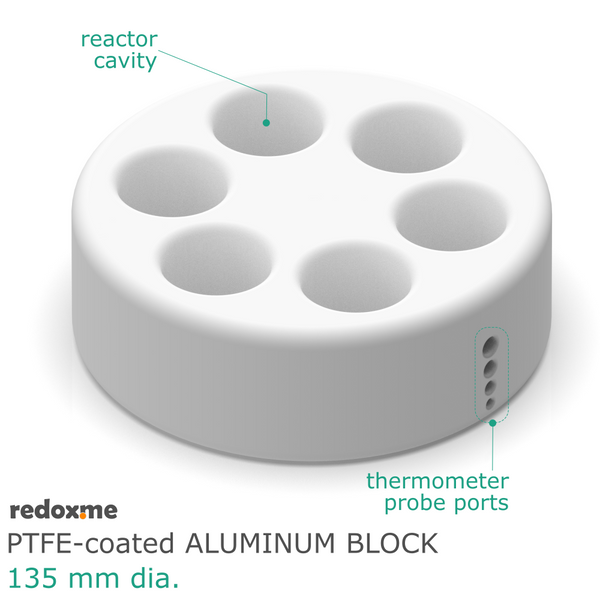

This PTFE-coated Aluminum Block should be placed on a hot-plate or a hot-plate magnetic stirrer. The block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm.
approx. weight: 1.25 kg (6 cavities), 1.33 kg (5 cavities), 1.41 kg (4 cavities), 1.50 kg (3 cavities), 1.58 kg (2 cavities) and 1.66 kg (1 cavity)

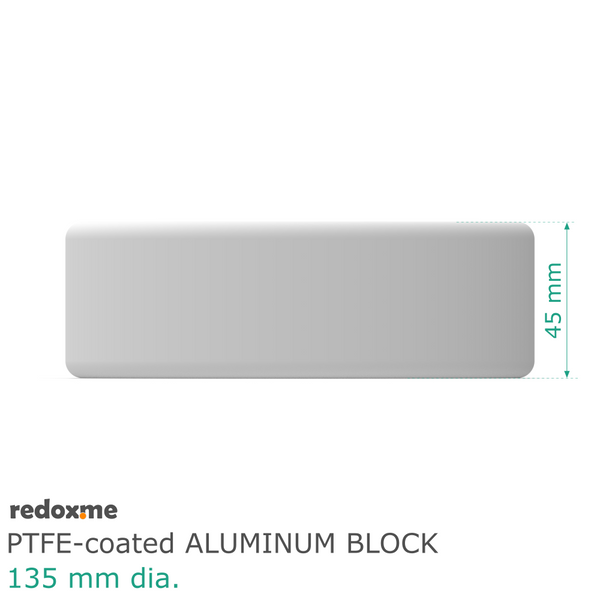

height: 45 mm
cavity depth: 40 mm
cavity diameter: 31 mm (A- and D-series), 27 mm (B-series) and 21 mm (C-series)

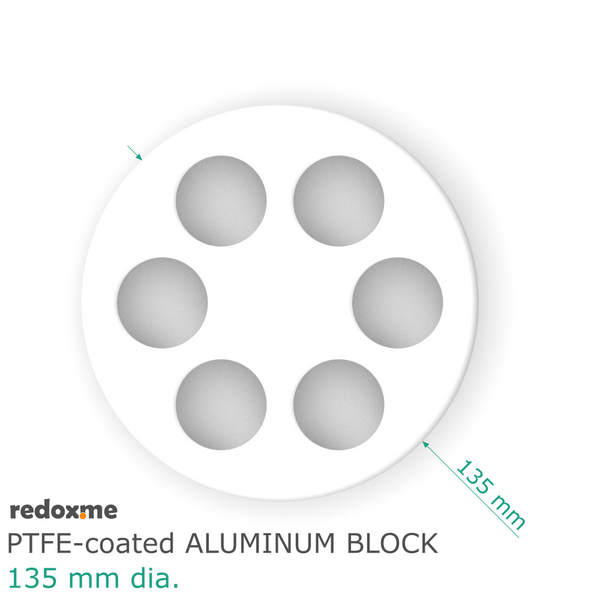

block diameter: 135 mm
thermometer hole diameter: 2.5 mm, 3.5 mm, 4.5 mm and 5.5 mm
maximum operational temperature: 260 deg C
minimum operational temperature: -70 deg C
1 x PTFE-coated Aluminum Block
