MM EC H-Cell 2x15 mL- Magnetic Mount Electrochemical H-Cell

[powr-form-builder id=eb1c42d8_1505226564]

  • €2,499.00

SKU: C-A-MM_EC_HC-2x15

Order today, and we'll ship your package between and .

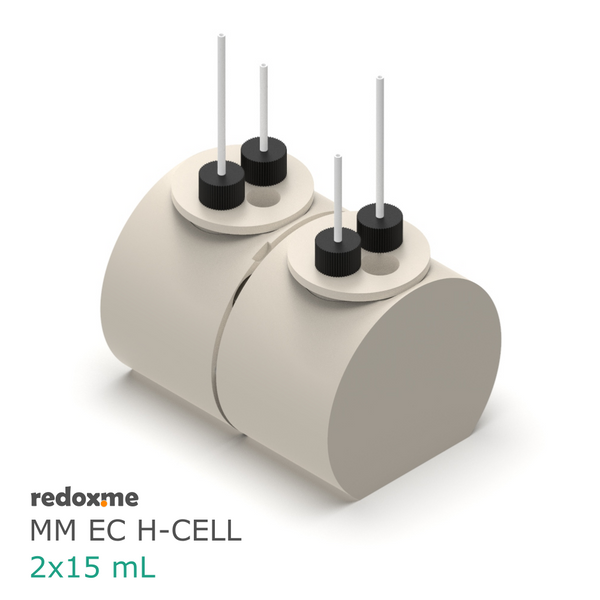

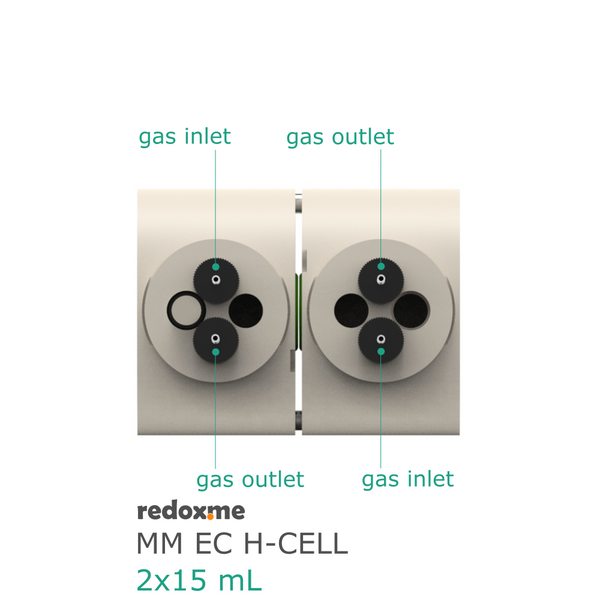

This is a horizontally mounted, double compartment electrochemical H-Cell. The cell elements are made of PEEK. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode. A screw mount version of this cell is available here

Application note

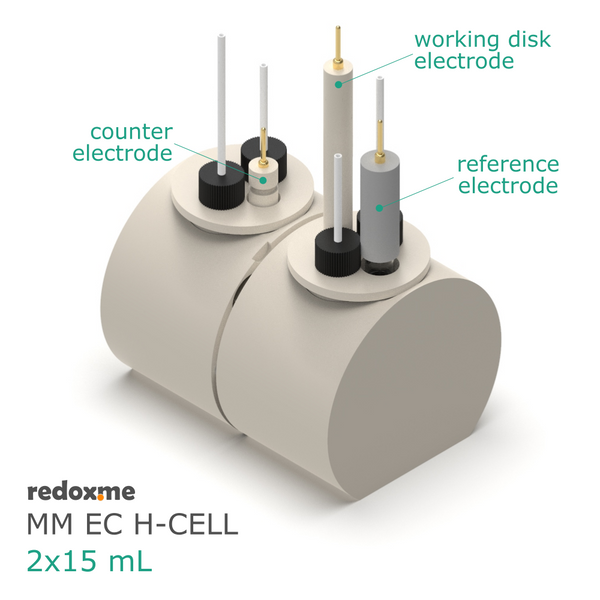

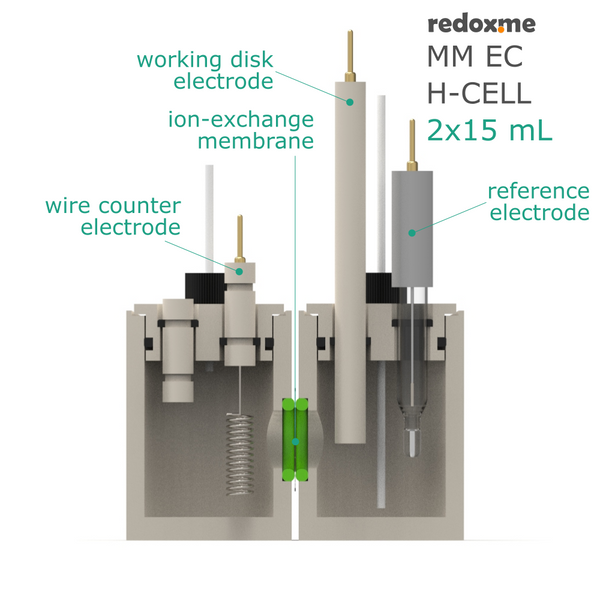

This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate the performance of a material (e.g. nanocrystalline material or conducting polymer) deposited on a working disk electrode, material drop-casted on a metal mesh or a metal foil current collector, or electrochemically active objects installed in a Tantalum clip. The metal wire counter electrode is mounted in the second chamber, while the reference electrode is mounted in a lid of the same chamber as the working electrode. Various counter electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes such as graphite rod. Typical applications include: basic electrochemistry, long-term measurements, RE potential measurements as well as electrosynthesis. For troubleshooting instruction see the redox.me blog post.

Specification
nominal exposure area of an ion-exchange membrane: 1 cm2
minimum electrolyte volume: 2x10 mL
maximum electrolyte volume: 2x15 mL
electrode plug diameter: 6 mm
maximum ion-exchange membrane thickness: 3 mm

Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 100g

Product includes
2 x lid – 0001CPEMA
2 x chamber
2 x plug
