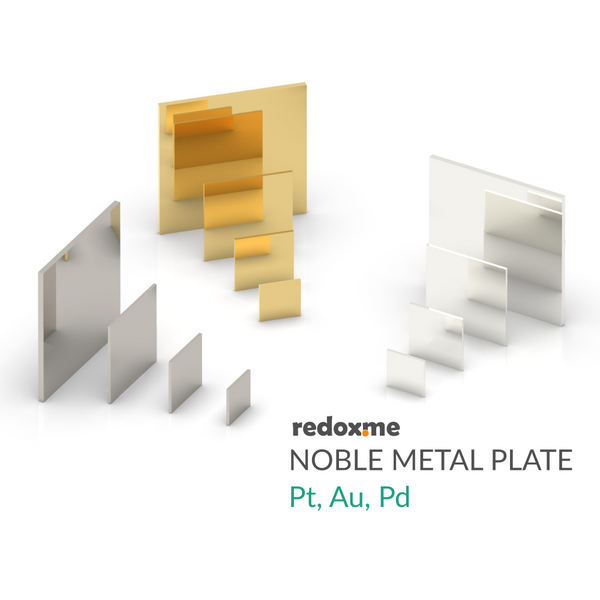

Noble Metal Plate - platinum, gold, palladium
It is a polycrystalline, high purity noble metal (platinum, gold or palladium) in a form of a square plate available in five sizes: 5 x 5 x 0.5 mm3, 7 x 7 x 0.5 mm3, 10 x 10 x 0.5 mm3, 15 x 15 x 0.5 mm3 and 25 x 25 x 1 mm3 for platinum and gold, and 5 x 5 x 0.3 mm3, 7 x 7 x 0.3 mm3, 10 x 10 x 0.3 mm3, 15 x 15 x 0.3 mm3 and 25 x 25 x 0.3 mm3 for palladium (other sizes available on request). Noble metals (i.e. gold and platinum-group metals) are recognized as being superior to other metallic electrode materials due to their stability under electrochemical conditions in aqueous and organic environments.
Application note
Noble metal plates as electrodes find application in a broad range of electrochemical processes because of their high electrical conductivity, mechanical stability, and resistance to chemical attack. There are also commonly used as current collectors for thin films characterization.
After use the noble metal plate can be chemically cleaned and mechanically polished using micro-sized abrasives (e.g. using sub-micron alumina powder) followed by sonication. The noble metal plates can be used repeatedly.
Specification
available sizes: 5 x 5 mm2, 7 x 7 mm2, 10 x 10 mm2, 15 x 15 mm2, 25 x 25 mm2
thickness: 0.5 mm (gold and platinum), 0.3 mm (palladium)
surface treatment: untreated
purity: Pt >99.95%, Au >99.99%, Pd >99.95%
Intrastat data
HS Code: 71101910 (platinum), 71081310 (gold), 71102900 (palladium)
Country of Origin: Sweden
NET weight: 100 g
Product includes
1 Noble Metal Plate of selected size and material
