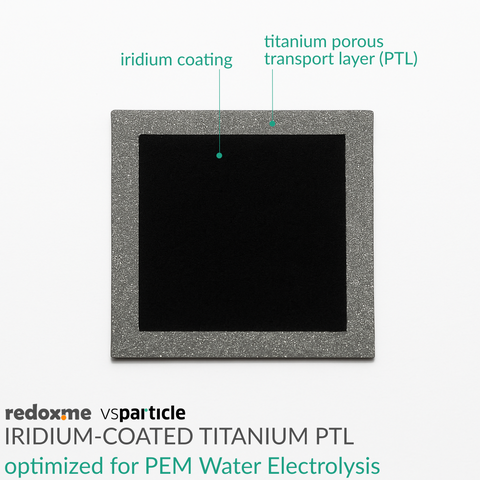

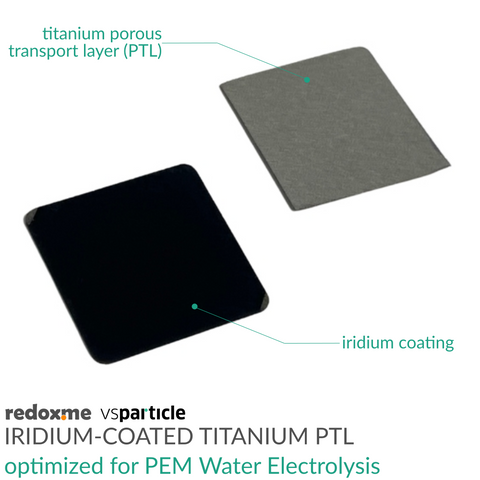

Iridium-Coated Titanium PTL – Optimized for PEM Water Electrolysis
Membrane Electrode Assembly (MEA) is the core component used in Proton Exchange Membrane (PEM) electrolyzers. The MEA is an integral part of the electrolyzer stack where the electrolysis reactions take place. It consists of several layers, each with a specific function, and is designed to facilitate the efficient production of hydrogen from water. In a MEA the catalyst layer, typically composed of platinum and iridium, is applied onto a titanium porous transport layer (PTL). This configuration optimizes the electrode's efficiency and durability, which is crucial for generating hydrogen through water electrolysis. This Impaction-assisted Spark Ablated iridium coating enhances the catalyst's stability and performance, making the electrode assembly more resistant to degradation over time, thereby improving the overall efficiency of the electrolysis process.
Customisation options include: a) iridium loading: low to high, b) PTL size, and c) coating only on the provided PTL.
Each product comes with additional services that you can choose on this page.
Application note
The iridium-coated titanium PTL is designed for high-efficiency PEM electrolyzers. It offers exceptional corrosion resistance and oxygen evolution reaction (OER) performance. Its uniform and nano-scale iridium coating ensures durability under harsh anodic conditions.
The main features of the iridium-coated titanium PTL are: a) uniform iridium catalyst layer, customizable loading, b) high porosity titanium substrate, and c) compatibility with most MEA stack designs.
The main applications of this iridium-coated titanium PTL are: a) PEM Water Electrolysis (anode side) at lab-scale & industrially relevant conditions, b) high-current-density electrolyzers (Co2RR, NRR, etc.), and c) custom R&D setups. For more information, see the White Paper.
Specification
substrate: titanium PTL
coating material: iridium
coating method: Impaction-assisted Spark Ablation
thickness of the electrode: 250 μm +/-5 μm
porosity: 30-80%
dimensions*: 1x1, 2x2, 2.5x2.5, 3x3, 5x5, 10x10 and 15x15 cm2
compatibility: PEM Electrolyzers (CO2RR, N2RR, etc.)
operating temperature: RT to 120 deg C
supplier: VSParticle B.V., The Netherlands
*other sizes available on request
Intrastat data
HS Code:
Country of Origin: The Netherlands
NET weight: 13 g
Product includes
1 x iridium-coated titanium PTL
