Flow Cell Attachment for SPE holder

Flow cell attachment increases the functionality of the Screen-Printed Electrode (SPE) Holder and makes the SPEs operating under flow conditions. The assembled set consisting of Screen-Printed Electrode Holder, Flow Cell Attachment and the reservoir is gas- and liquid-tight. The reservoir is composed of Basic Electrochemical Cell (BEC 50 mL) with two additional plugs. It enables further analysis of the solution or conducting reference electrochemical measurement using classical electrodes (6 mm dia., not included in the set). The attachment elements are constructed with materials that are chemically resistive to a wide range of electrolytes (PEEK, PFA/ETFE). Other materials such as PTFE, Titanium, Stainless Steel, etc., are available on request. The Flow Cell Attachment well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements.

Application note

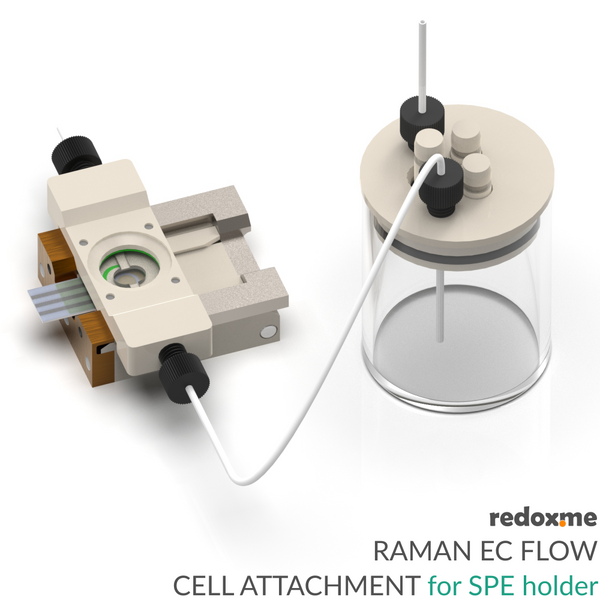

The Flow Cell Attachment is installed on the guide rails of the Screen-Printed Electrode Holder. The tubing is connected to the peristaltic pump (not included in the set) which drives the fluid from the reservoir through the cell (above the electrode assembly) and then returns it to the reservoir.

Specification
tubing size: 1/16" OD x .040" ID (1.6mm OD x 1.0mm ID)
maximum electrolyte volume in the reservoir: 40 mL
electrode plug diameter in the reservoir: 6 mm

Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 50 g (attachment only), 200 g (attachment with SPE holder)

Product includes
1 x flow chamber with fittings
1 x reservoir (BEC 50 mL + 2 additional plugs)
1 x set of O-Rings

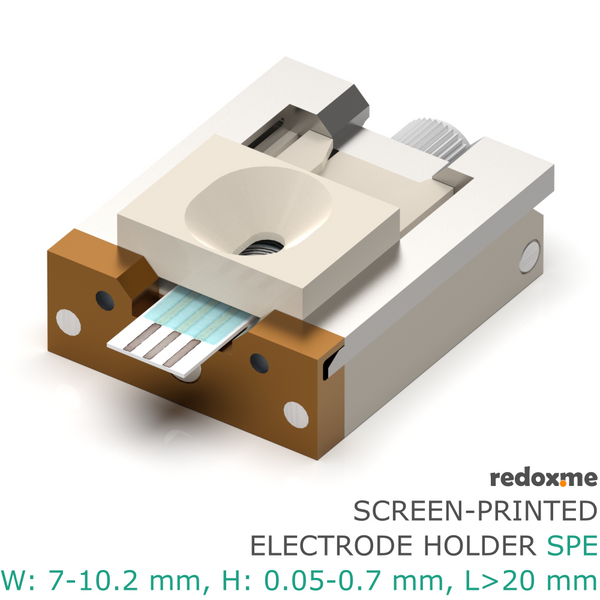

1 x Screen-Printed Electrode Holder (as a variant)
