GDE XRD EC 1.75 mL - Gas Diffusion Electrode X-Ray Diffraction Electrochemical Cell

[powr-form-builder id=eb1c42d8_1505226564]

  • €1,400.00

Order today, and we'll ship your package beetwen and .


PRICE RANGE: 1260-1400 €

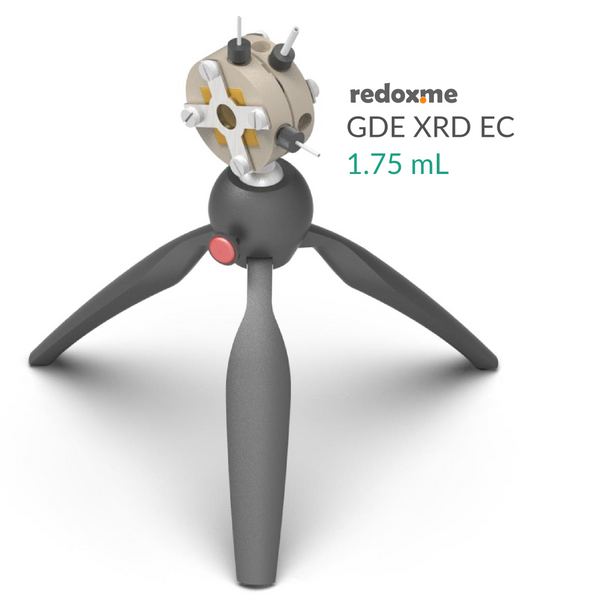

This is a horizontally mounted, multi-purpose electrochemical cell for Gas Diffusion Electrode (GDE), designed to be used with X-Ray Diffractometry. The cell consists of two individual compartments: the liquid flow chamber and the gas chamber, which are placed on opposing faces of a GDE. Both compartments are held in place by magnetic mount, providing a leakage-free O-Ring seal (a screw version is available on request). The liquid chamber can be filled with an electrolyte using a syringe or an electrolyte can continuously flow through it using an external reservoir and peristaltic pump (both not included). The dry chamber is gas-tight enabling continuous flow of a gas carrier and evacuation of the gas products for sampling using standard analytical instruments such as a residual gas analyzer. Both compartments are made of a polyether ether ketone (PEEK) material. The cell is meant to be used with standard reference electrode having 6 mm in diameter and counter electrode in the form of a rod/helix with 6 mm in diameter and 15 mm active.

Application note
GDE XRD Electrochemical Cell is used to effectively screen and validate GDEs for metal-air batteries, water electrolyzes, and alkaline fuel cells. It also enables in-situ X-Ray Diffraction acquisition. It is used as an air-breathing, thermodynamically referenced electroanalytical cell that allows to mimic the Janus arrangement of the GDE in a metal–air cell: one face freely exposed to gases, the other wetted by electrolyte.

Specification
nominal exposure area: 1 cm2 (other values on request)
electrolyte thickness: 12 mm
liquid flow chamber volume: 1.75 mL
maximum GDE thickness: 4 mm
minimum GDE size: 17 mm x 25 mm
recommended GDE size: 25 mm x 25 mm
electrode plug diameter: 6 mm

Product includes
1 liquid flow chamber (magnetic mount)
1 gas chamber (magnetic mount)
2 stainless steel window holders
2 plugs
1 set of O-Rings
1 set of screws
2 flangeless nuts for gas intel/outlet (1/16’’, 1.6 mm tubing)
2 flangeless nuts for electrolyte intel/outlet (3 mm tubing)
2 flangeless ferrules (1/16’’, 1.6 mm tubing)
2 flangeless ferrules (3 mm tubing)
1 Manfrotto PIXI Table Tripod
1 XS Bendy Flexible Tripod (octopus)
