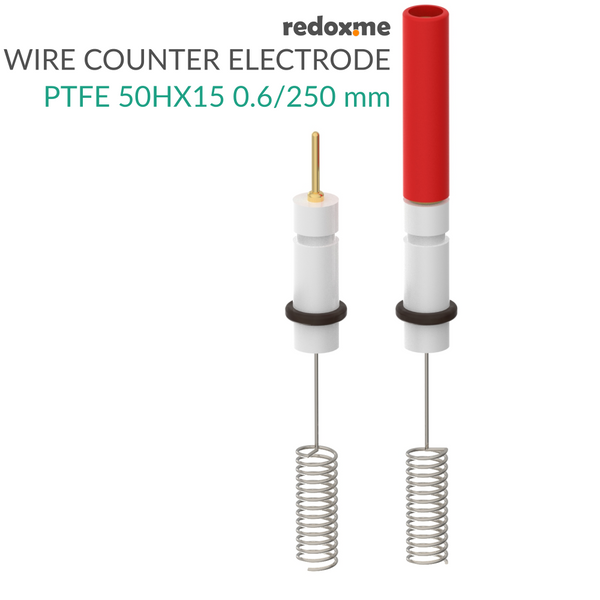

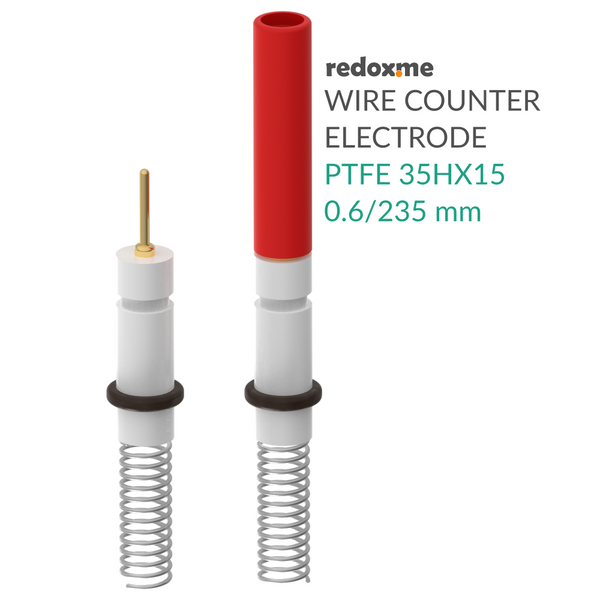

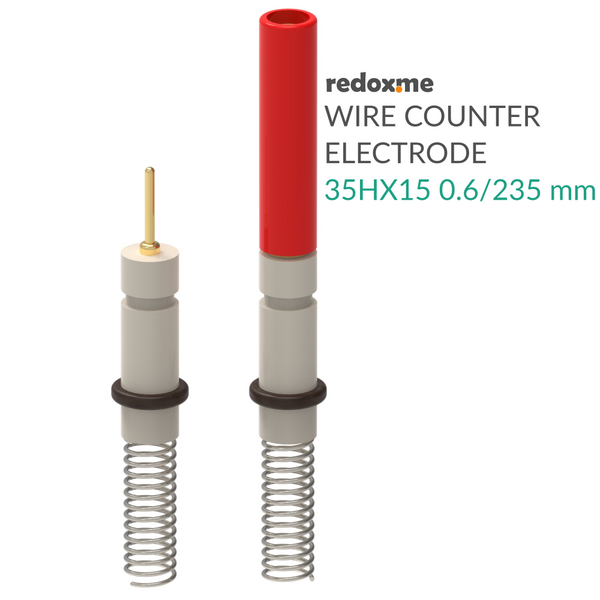

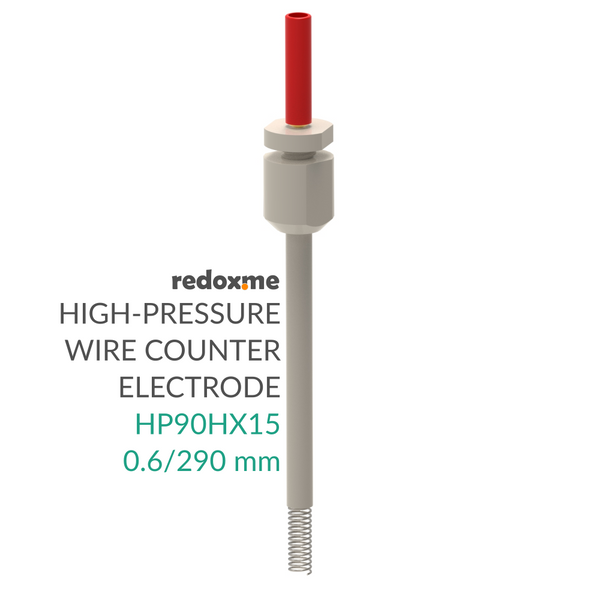

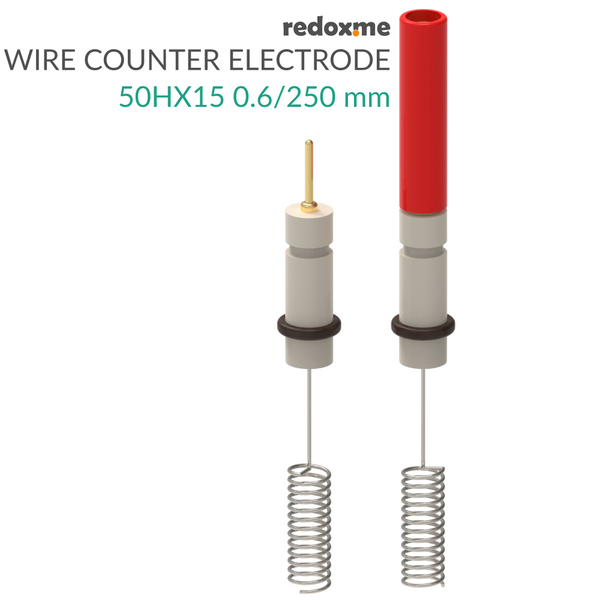

Metal Wire Auxiliary Electrode - ST 0.6/custom

[powr-form-builder id=eb1c42d8_1505226564]

  • €62.80

Order today, and we'll ship your package beetwen and .


PRICE RANGE: 62.80 - 116 €

The metal wire counter (auxiliary) electrode is provided in electrochemical cell as a current sink to shunt excess current away from the reference electrode. The counter electrode is generally chosen to be inert under the reaction conditions, typically platinum, rhodium, palladium or gold wire.

Application note
The metal wire electrode is immersed in the ion-conducting solution as a counter electrode. An electric current is passed between the working electrode and the wire electrode for a certain amount of time. After the process, the electrode should be washed several times with ethanol and dried under the nitrogen flow. Store the metal wire electrode in the glass tube sealed with O-rings (all included in the package).

Specification
wire diameter: 0.6 mm
wire length: 20 mm plus effective length

Product includes
1 metal wire electrode with gold-plated pin and PEEK plug
2 O-rings
1 glass tube
