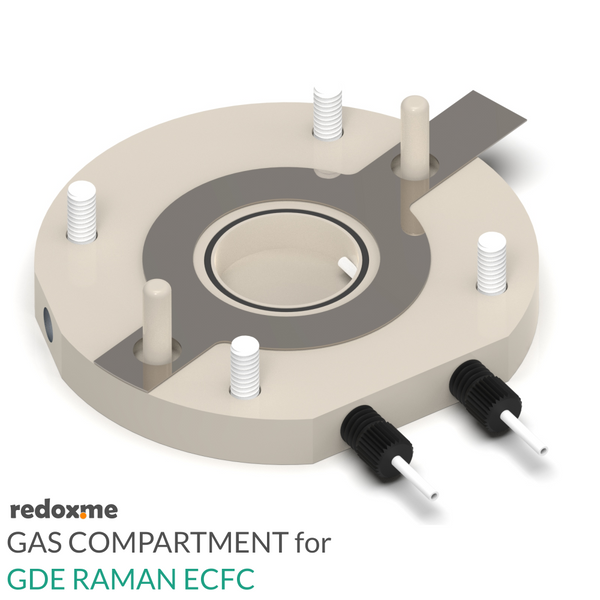

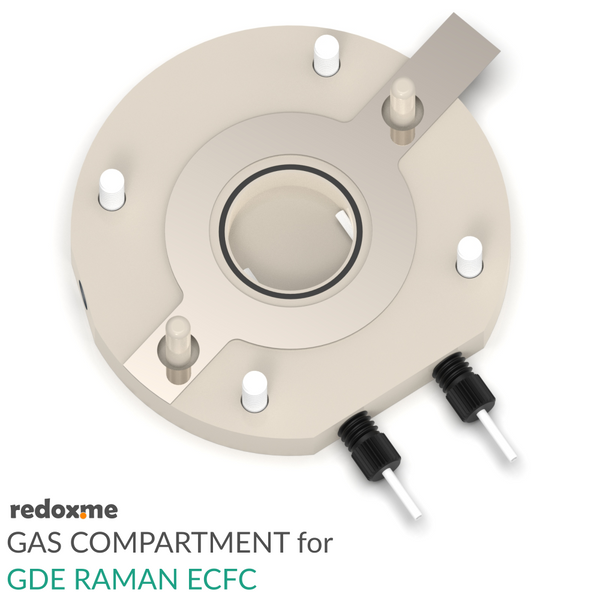

Gas Compartment of GDE Raman ECFC

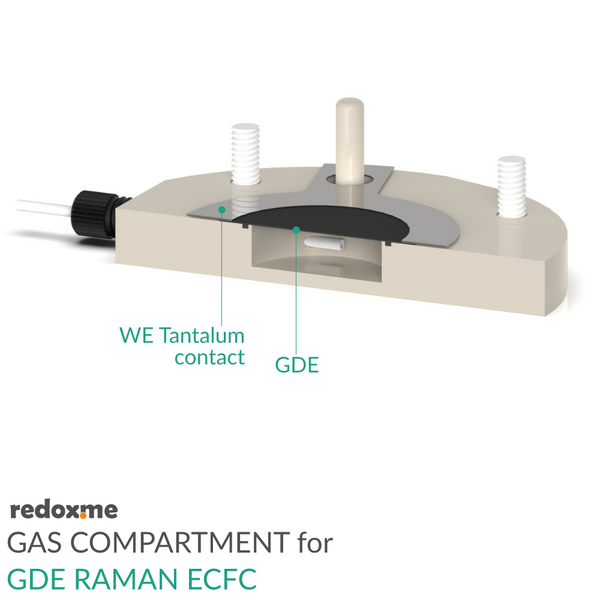

The Gas Compartment is used to convert magnetic or screw mount variant of Raman ECFC into GDE Raman ECFC. This conversion allows installation of Gas Diffusion Electrodes as working electrode.
Compatibility table.
| Raman ECFC variant | Gas Compartment variant |
| not smaller than 23 mm x 23 mm (default) | 28 mm dia. (default) |
| 15 mm x 15 mm | 18 mm dia. |
| 10 mm x 10 mm | 13 mm dia. |
| 7 mm x 7 mm | 10 mm dia. |
The Gas Compartment elements are constructed with materials that are inert to the electrochemical system (PEEK, Fluorocarbons). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is well sealed which prevents the gas to leak out.
Application note
This Gas Compartment can be used to study GDEs in fuel cells, metal-air batteries, CO2 reduction, etc.
Specification
GDE active surface area: 21 mm dia. (variant 28 mm dia.), 13 mm dia. (variant 18 mm dia.), 8 mm dia. (variant 13 mm dia.) and 5 mm dia. (variant 10 mm dia.)
Intrastat data
HS Code: 90275000
Country of Origin: Sweden
NET weight: 100 g

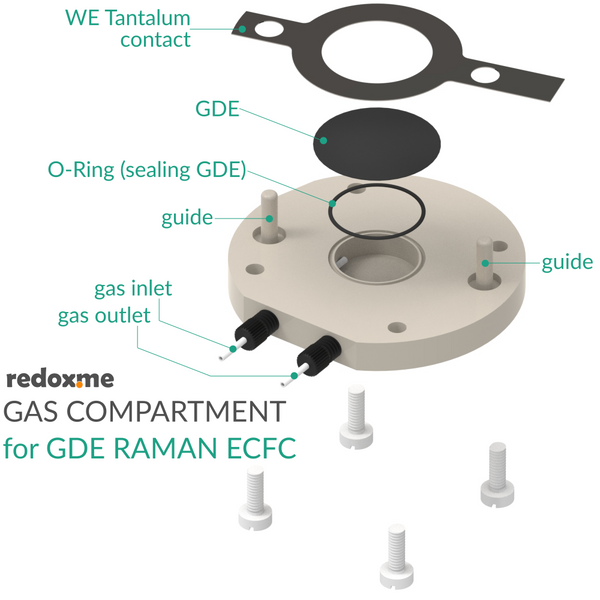

Product includes
1 x gas compartment
1 x Tantalum electrical contact
1 x set of O-Rings
