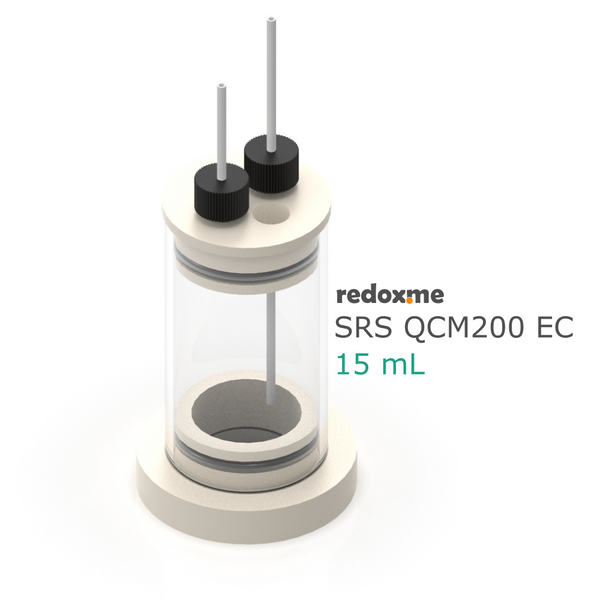

Quartz Crystal Microbalance Electrochemical cell - SRS QCM200 EC 15 mL

[powr-form-builder id=eb1c42d8_1505226564]

  • €800.00

Order today, and we'll ship your package beetwen and .


This is a stationary solution voltammetry cell for simultaneous measurements of electrochemical response and Quartz Crystal Microbalance sensing. This QCM EC module has been developed for a specific equipment supplied by Stanford Research Systems. It is compatible with QCM200 (5MHz QCM) system. In this configuration, a thin film of measured material is deposited directly on top of the QCM sensor. The QCM EC cell is mounted on Crystal Holder head, while counter or/and reference electrodes are mounted in a top casing (either 2-, or 3-electrode setup). The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

Application note
The reference electrode tip should be placed close to the QCM sensor surface (3-5 mm), where the working electrode is exposed to the electrolyte. This will ensure a negligible potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

Specification
compatibility: SRS QCM200
QCM sensor: QCM25 Crystal Oscillator
minimum electrolyte volume: 2.5 mL
maximum electrolyte volume: 15 mL
electrode plug diameter: 6 mm

Product includes
1 x lid – 0001CPEMA
1 x glass chamber – 0002PGLMA
1 x bottom casing
1 x retainer ring
1 x plug – 0005CPEMA
