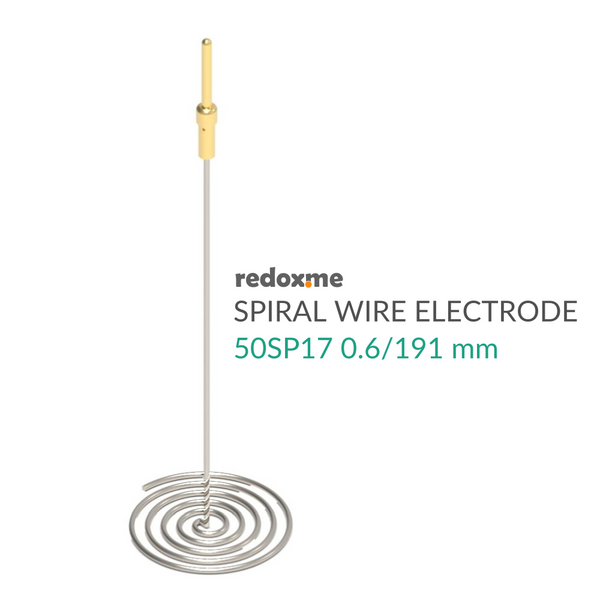

Spiral Wire Electrode - 50SP17 0.6/191 mm
This Spiral Wire Electrode is intended to be used with The Small and The Standard Etch Cell as a counter electrode.
Application note
The wire electrode is immersed in the solution as a counter electrode. An electric current is passed between the working electrode and the wire electrode for a certain amount of time. After the process, the electrode should be washed several times with ethanol and dried under the nitrogen flow. If you are looking for a procedure for cleaning a silver electrode, find it here.

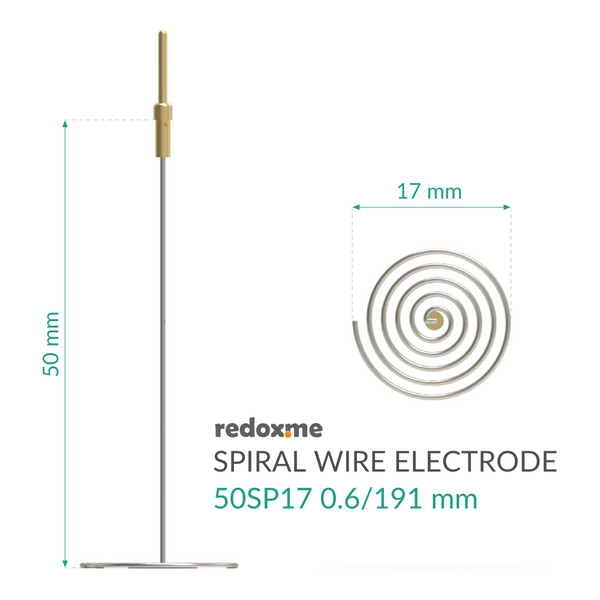

Specification
spiral inner diameter: 1 mm
spiral outer diameter: 17 mm
number of turns: 5
wire diameter: 0.6 mm
turn spacing: 1 mm
total length of wire: 191 mm (141 mm long spiral, 50 mm long straight wire)
Intrastat data

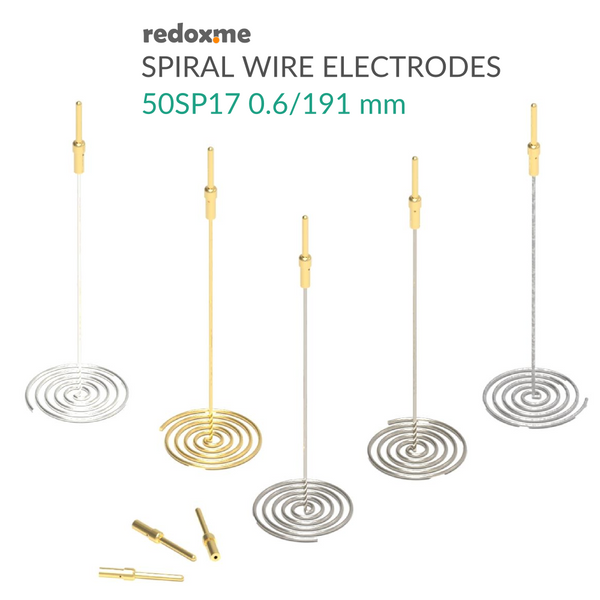

HS Code: 71101910 (platinum), 71081310 (gold), 71069200 (silver), 72230019 (stainless steel), 75051100 (nickel)
Country of Origin: Sweden
NET weight: 100 g
Product includes
1 metal wire electrode with gold-plated pin
