Spectroscopic Window

[powr-form-builder id=eb1c42d8_1505226564]

  • €63.00

SKU: ACC-WIN_JGS3-25dia

Order today, and we'll ship your package between and .

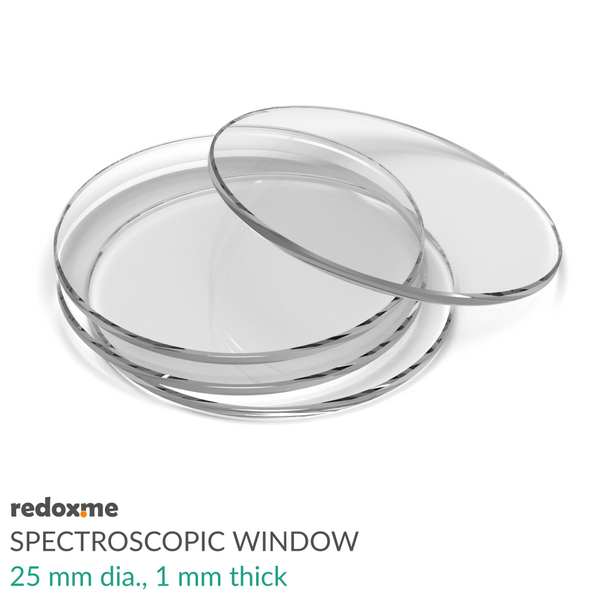

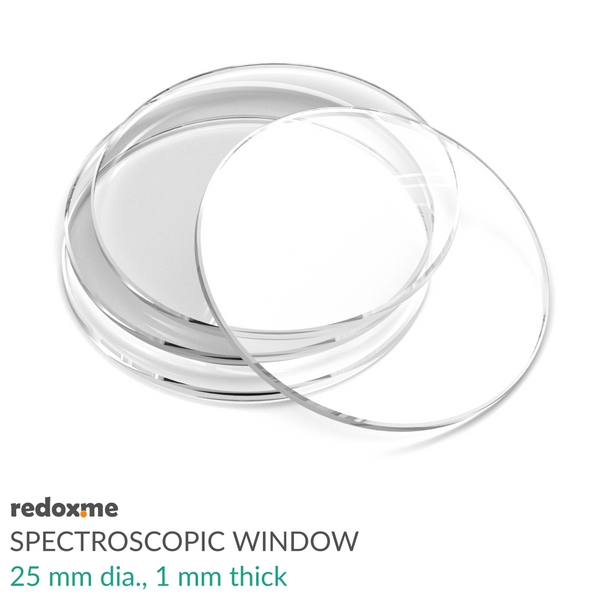

Those windows are made of materials commonly used in spectro-electrochemical cells. Both surfaces are optically polished. The edges are chamfered to reduce the risk of breaking during the cell assembly.

Application note
Fused quartz window (JGS3) is a preferred material in transmission spectro-electrochemistry in the band from 260 nm to 3500 nm. Sapphire window offers wide band transmission from UV to Mid-IR (150 nm to 5500 nm) and this specific crystallographic orientation is a default window material for Raman spectroscopy. Calcium Fluoride (CaF₂, 130 nm to 10000 nm) and Zinc Selenide (ZnSe, 600 nm to 22000 nm) are commonly used for spectroscopy in IR spectroscopy.

    Specification
    diameter: 25 mm
    thickness: 1 mm

    Intrastat data
    HS Code: 90029000
    Country of Origin: Sweden
    NET weight: 100 g

    Product includes
    1 x spectroscopic window of selected material, 25 mm dia., 1 mm thick,
