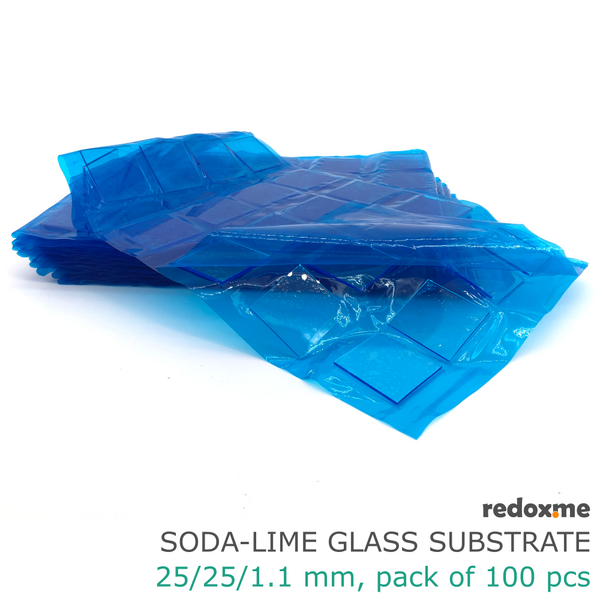

Soda-Lime Glass Substrate 25/25/1.1 mm – pack of 100
Soda-lime glass is the most popular glass type used as an insulating substrate for thin/thick film deposition. Soda-lime glass is made by a floating molten glass on a bed of molten tin, assuring uniform thickness and very flat surfaces.
Application note
Its smooth and non-reactive surface makes it excellent as a mechanical support for conductive electrode material.
Specification
density: 2.5 g/cm3
Young's modulus: (70-75)·109 Pa
Vickers hardness: 1.35·103 Pa
Mohs hardness: 6.5·103 Pa
Poisson's ratio: 0.221±0.1
thermal conductivity: 0.95±0.05W/MK at 20 oC
CLTE: 0~100: 10.2; 0~200: 8.9; 0~300: 8.9; 0~400: 8.9; 0~500: 8.9
strain point: 500 oC
annealing range: 480-585 oC
softening point: 585 oC or 720-740 oC
specific heat: 1.10 J/g oC
dielectric constant: 7.75·106H at 25 oC (dynamic)
resistivity: 5·107 W at 1000 Hz
chemical stability: alkali/acid resistance, hydrolyzable
Intrastat data
HS Code: 70060010
Country of Origin: Sweden
NET weight: 200 g
Product includes
100 pcs of soda-lime glass substrates 25/25/1.1 mm
