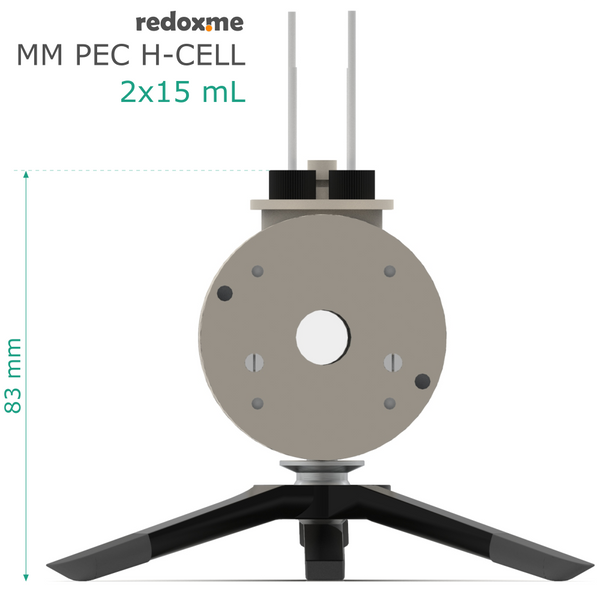

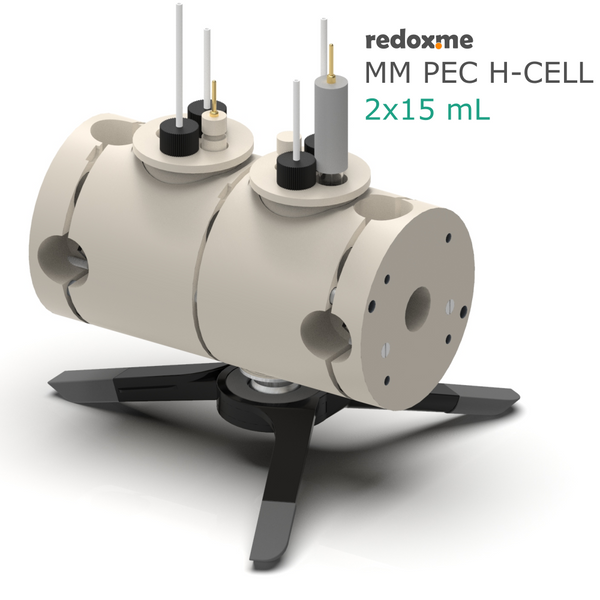

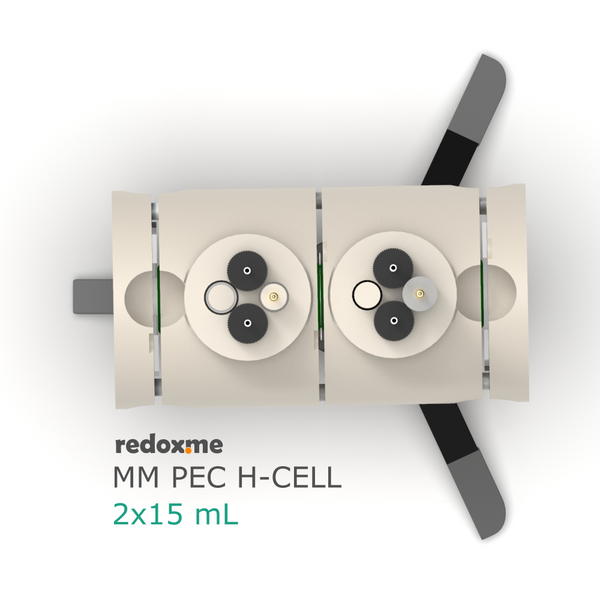

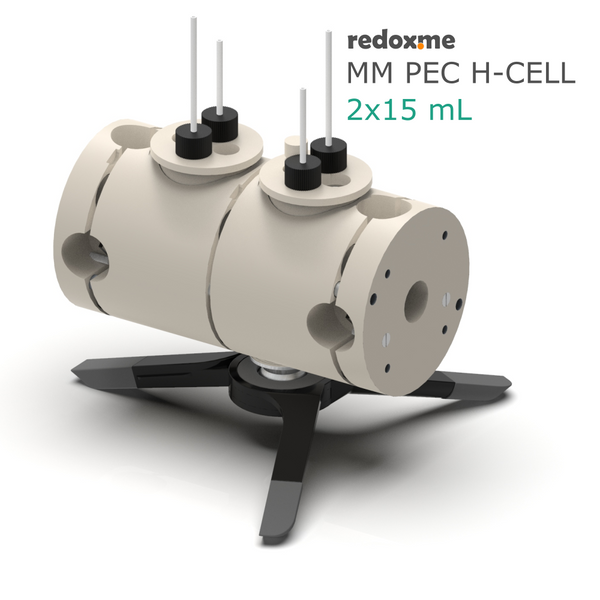

MM PEC H-Cell 2x15 mL- Magnetic Mount Photo-Electrochemical H-Cell
This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to simultaneously investigate thin film photo-anodes and cathodes. The cell elements are made of PEEK. It well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at photo-anode and cathode do not affect the opposite electrode. Screw mount version of this cell is available here. See the assembly demonstration here.
Application note

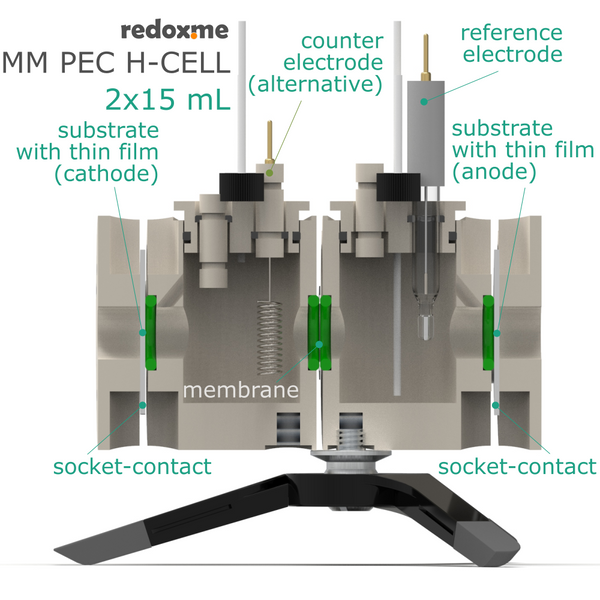

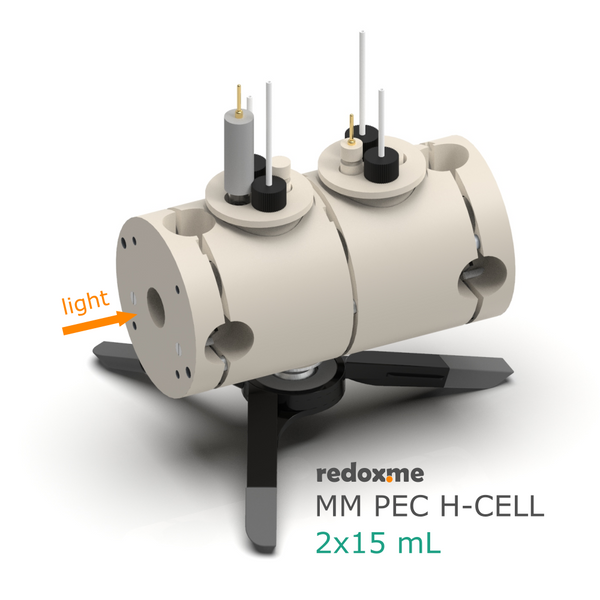

This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of a thin film photo-anode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The cathode (counter electrode) is mounted in the second chamber either in a top casing or attached on the side of the cell as a thin film deposited on rigid or flexible substrate. The reference electrode is mounted in a top casing of the same chamber as the photo-anode. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes and thin films. Typical applications include: basic photochemistry, photolytic water splitting, photoinduced charge separation and photocorrosion. For troubleshooting instruction see the redox.me blog post.

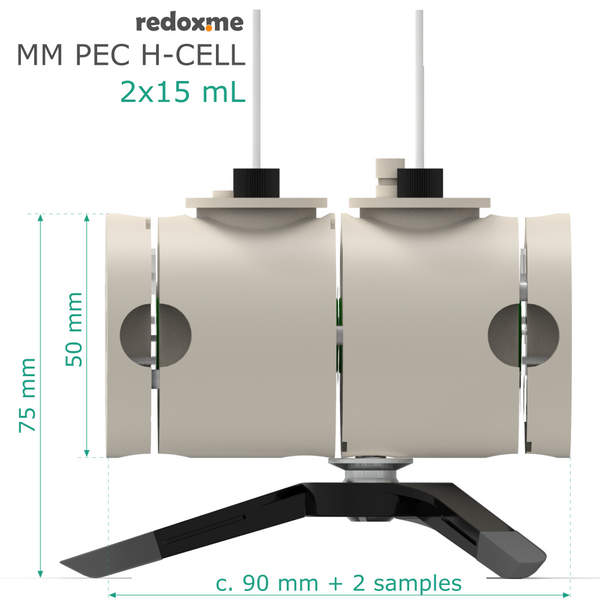

Specification
nominal exposure area: 1 cm2
minimum electrolyte volume: 2x10 mL
maximum electrolyte volume: 2x15 mL
electrode plug diameter: 6 mm
recommended substrate size: 25 mm x 25 mm
maximum substrate thickness: 3 mm
Intrastat data
HS Code: 90309000
Country of Origin: Sweden
NET weight: 500g

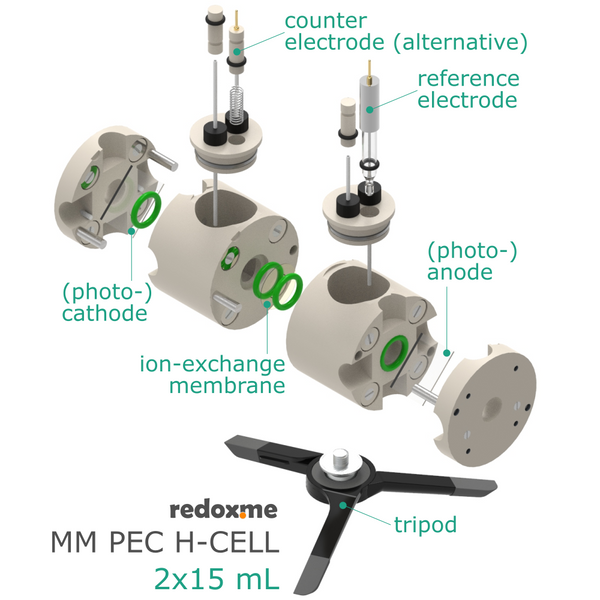

Product includes
2 x lid – 0001CPEMA
2 x chamber - 0030CPEMAMM
2 x sample mount – 0004CPEMAMM
1 x micro tripod
4 x plug
